KRIA SOM DASHBOARD

Introduction

This repository contains the source code of Kria SOM dashboard tool which provides the debugging information of Kria SOM.

How to use

Kria Yocto/PetaLinux has Bokeh and dashboard installed, and does not require installation. The Bokeh server is also started automatically, URL is printed out before login.

Kria Ubuntu 24.04 OS also have Kria-dashboard baked in. The url currently does not print out, but you can check for the startup command using this:

sudo ps -p $(sudo lsof -t -iTCP:5006 -sTCP:LISTEN) -o args=

And this will be the URL: http://*IP_ADDRESS*:5006/kria-dashboard

Kria Ubuntu 22.04 does not have Kria-dashboard baked in, but it is in the Xilinx PPA and can be installed after Linux boot and setup (KD240), KR260, KV260)

sudo apt search kria-dashboard
sudo apt install kria-dashboard

To start Bokeh server manually, use one of the following commands:

sudo bokeh serve --show --allow-websocket-origin=*IP_ADDRESS*:5006 /usr/lib/python3/site-packages/kria-dashboard
# use
#   sudo find / -iname "kria-dashboard"
# to find the folder if its not in the above python path
# if xlnx-platformstats could not be imported, it can be installed with:
#    sudo apt install python3-xlnx-platformstats
# note that xilinx-apps/ppa was added during initial linux boot setup

You can also manually clone kria-dashboard to use:

git clone https://github.com/Xilinx/kria-dashboard.git
sudo bokeh serve --show --allow-websocket-origin=*IP_ADDRESS*:5006 kria-dashboard

In a browser go to the following url:

http://*IP_ADDRESS*:5006/kria-dashboard

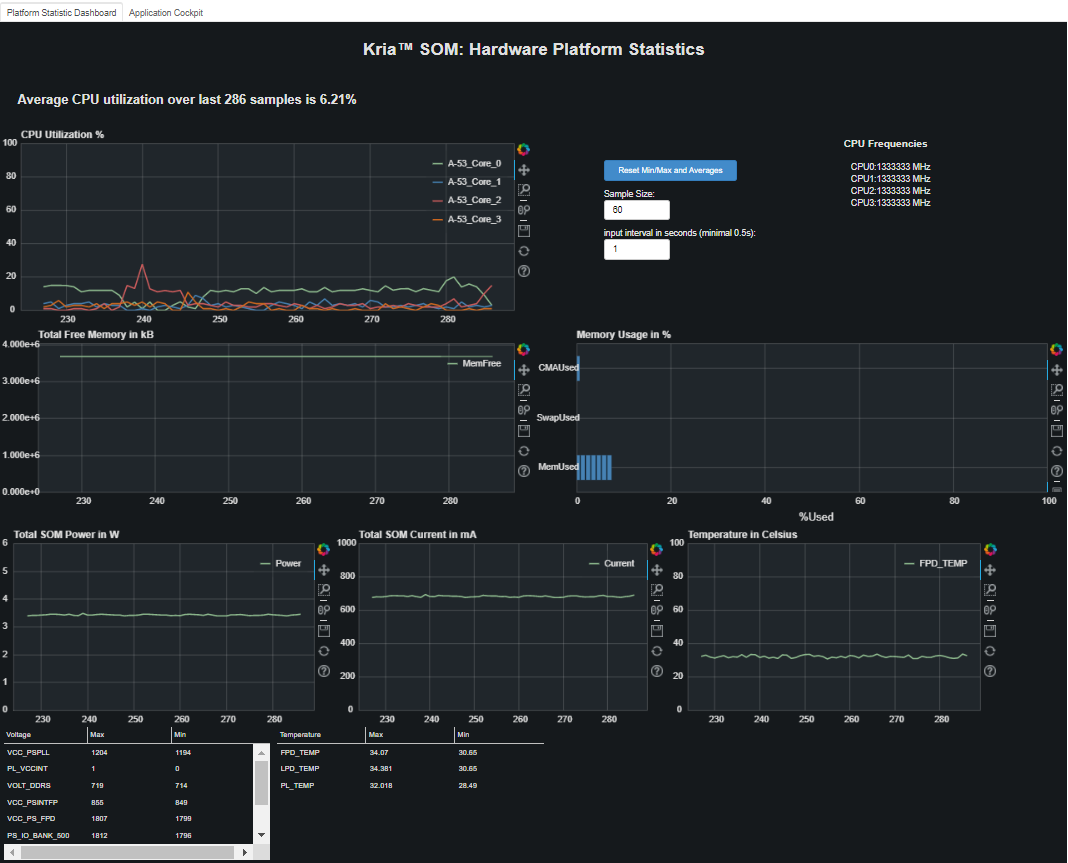

Current view:
