ER

ER: Requirements Specification Component

Gameorama is a web application that provides a place for gamers to post, discuss and rate the latest news on their favorite videogames and topics.

A1: Gameorama

The purpose of this project is to specify and develop an information system with a web application for a collaborative news management platform for videogames/gamers. The videogame world is continuously evolving, and its community sometimes struggles to keep up with all the changes and new releases. Gameorama solves this issue by providing a place for gamers to follow their favorite topics, genres, and games.

The goal of Gameorama is to develop a platform for the gaming community to post, rate, and comment on the latest news, while also being able to follow their favorite videogame topics.

The website's main page has the ability to sort posts by popularity and by the latest news. Authenticated users have the option to show their customized feed, which shows news from topics and users they are currently following, additionally, they can save their favorite news posts. The website also features a navbar with a search feature, which lets users easily search users, topics, and news. In this navbar, for authenticated users, there will also be a notifications icon, a button that allows them to create a news post and a profile page icon that leads them to an editable profile page, featuring a short biography, a profile picture, reputation score, the number of followers and their posted news. It is also on this profile page that the users can see their saved posts.

The application will feature a rating system for news and comments, granting authenticated users the ability to upvote or downvote them based on their reliability and usefulness. A news post/comment gets more visibility based on the value of upvotes-downvotes it gets. These ratings also directly influence the reputation score of the owner of the post/comment, so other users can know if their posted information is legitimate and reliable. Moreover, it is also possible for authenticated users to report abusive, inappropriate, or fake news/comments, so the moderator can analyze these situations and correctly deal with them.

Users will be distributed in three distinct groups: Visitors, Members, and Administrators. Upon entering the website, all users are presented with the latest news on the most popular topics and can search for news, topics, and users. Visitors (unauthenticated users) are able to register and/or login to create a new account. Members (authenticated users) can post and rate news and comments, while also being able to follow topics and other users, this makes it so the news that appears on their feed can be customized to their preferences. Finally, administrators can delete topics and posted news/comments of any user on the website, furthermore, if necessary, they can delete abusive accounts.

---

A2: Actors and User stories

The following sections provide several details about the project, its actors and functionalities.

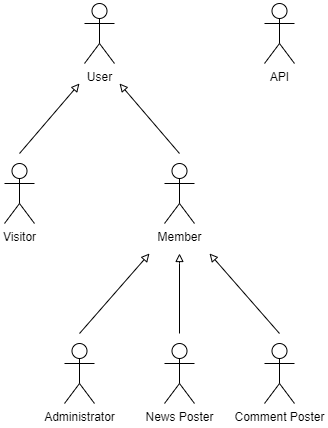

1. Actors

Identifier	Description	Examples
User	Generic user with access to public information, such as topics, news and comments.	n/a
Visitor	Unauthenticated user that can register itself (sign-up) or sign-in in the system.	n/a
Member	Authenticated user that can post news, comments and edit all of its posts and comments. Can also upvote or downvote other user's posts and comments. Has the ability to follow users and topics to have a customized news feed.	WanWan
News Poster	Authenticated user that belongs to the same location as the creator of a news item and can change/delete its existing information.	WanWan
Comment Poster	Authenticated user that belongs to the same location as the creator of a comment and can change/delete its existing information.	kaka34
Administrator	Authenticated user that is responsible for the management of users, news and comments.	Admin9218
API	External APIs that can be used to register and/or authenticate into the system.	Google

Table 1: Actor's description.

2. User Stories

2.1. User

Identifier	Name	Priority	Description
US101	Main Page News	High	As a User, I want to access the website's main page, so that I can see the latest news about gaming.
US102	Profile Page	High	As a User, I want to consult the profile of a Member, so that I can see their biography, profile picture, reputation score and number of followers.
US103	View Member's Posted News Posts	High	As a User, I want to be able so see in a Member's profile page the news posts they've created so that I can easily access them.
US104	View Member's Comments	High	As a User, I want to be able so see in a Member's profile page the comments they've posted so that I can easily access them.
US105	View Member's Followed Members	High	As a User, I want to be able so see a Member's followed members so that I can search for people to follow.
US106	View Member's Followers	High	As a User, I want to be able so see a Member's followers so that I can search for people to follow.
US107	View Member's Followed Topics	High	As a User, I want to be able so see a Member's followed topics so that I can search for topics to follow.
US108	Search	High	As a User, I want to search for specific news posts, topics and users so that I can easily find what I'm looking for.
US109	Topic Page	High	As a User, I want to consult the page of a specific gaming topic so that I can see the latest news about that subject.
US110	News Post Page	High	As a User, I want to access the page of a specific news post so that I can see more details about that post and its comments.
US111	Main Page Trending Topics	Medium	As a User, I want to consult the top trending topics on the main page so that I can discover other gaming topics that are popular.
US112	Main Page Hall of Fame	Medium	As a User, I want to see the Members with the most Aura score, so that I can find interesting people to follow.
US113	About Page	Low	As a User, I want to access the About page, so that I can see a complete website's description.

Table 2: User's user stories.

2.2. Visitor

Identifier	Name	Priority	Description
US21	Sign Up	High	As a Visitor, I want to register myself into the system, so that I can become a Member.
US22	Log In	High	As a Visitor, I want to authenticate into the system, so that I can have Member privileges.
US23	Sign Up using Google	Medium	As a Visitor, I want to register myself into the system using a Google account, so that I can become a Member, spending less time registering.
US24	Log In using Google	Medium	As a Visitor, I want to authenticate into the system using a Google account, so that I can have Member privileges.
US25	Recover Password	Medium	As a Visitor, I want to be able to recover the password of my account in case I forget it, so that I can access my account again and regain member privileges.

Table 3: Visitor's user stories.

2.3. Member

Identifier	Name	Priority	Description
US311	Logout	High	As a Member, I want to logout from the system, so that other users are able to login in the same computer.
US321	Create a News Post	High	As a Member, I want to create a news post for the community to read and comment, so that I can share the latest information on gaming.
US322	Select/Add a Topic	High	As a Member, when creating a news post, I want to able to select gaming topics related to that post, so that I can associate the news information with the respective subject/theme.
US323	Create a Topic	High	As a Member, when creating a news post, I want to able to create a new gaming topic related to that post, so that I can associate the news information with the respective subject/theme.
US324	Comment a News Post	High	As a Member, I want to comment on a news post, so that I can discuss and share my opinion with the community.
US331	Follow a Topic	High	As a Member, I want to follow a topic, so that I can see posts related to that topic in my customized news feed.
US332	Unfollow a Topic	High	As a Member, I want to unfollow a topic, so that I remove posts related to that topic from my customized news feed.
US333	Follow a Member	High	As a Member, I want to follow a member, so that I can see posts created by that member in my customized news feed.
US334	Unfollow a Member	High	As a Member, I want to unfollow a followed member, so that I remove posts created by that member from my customized news feed.
US341	Rate a News Post	High	As a Member, I want to upvote or downvote a news post based on my thoughts, so that I can affect the post's visibility.
US342	Rate a Comment	High	As a Member, I want to upvote or downvote a comment based on my thoughts, so that I can affect the comment's visibility.
US343	Report a Member	High	As a Member, I want to be able to report a member that posts offensive/misleading content, so that I can contribute in keeping Gameorama safe and reliable for me and other users.
US344	Report a News Post	High	As a Member, I want to be able to report an offensive/misleading news post, so that I can contribute in keeping Gameorama safe and reliable for me and other users.
US345	Report a Comment	High	As a Member, I want to be able to report an offensive/misleading comment, so that I can contribute in keeping Gameorama safe and reliable for me and other users.
US346	Report a Topic	High	As a Member, I want to be able to report an offensive/misleading topic, so that I can contribute in keeping Gameorama safe and reliable for me and other users.
US347	Bookmark a News Post	High	As a Member, I want to bookmark interesting news posts so that I can review them later.
US348	Remove Bookmarked a News Post	High	As a Member, I want to remove a Bookmarked news post so that I can delete them from my profile page.
US351	View Bookmarked News Posts	High	As a Member, I want to be able so see in my profile page the news posts I've bookmarked so that I can easily access them.
US352	Edit Profile Information	High	As a Member, I want to edit my own profile information (e.g. name, profile picture, biography), so that it can be up to date.
US353	Edit Account Settings	High	As a Member, I want to edit my account settings (e.g. email, password), so that I can keep my account safe.
US354	Delete Account	High	As a Member, I want to be able to delete my account, so that I can remove all information I posted on the website.
US361	Notifications	Medium	As a Member, I want to get notified when another Member follows me or comments on my post so that I can know when and who followed me/commented on my post faster.

Table 4: Member's user stories.

2.4. News Poster

Identifier	Name	Priority	Description
US41	Edit my News Post	High	As a News Poster, I want to be able to edit my news post so that I can change its information when needed.
US42	Delete my News Post	High	As a News Poster, I want to be able to delete my news post so that I can remove it in case it contains misleading information.

Table 5: News Poster's user stories.

2.5. Comment Poster

Identifier	Name	Priority	Description
US51	Edit my Comment	High	As a Comment Poster, I want to be able to edit my comment so that I can change its information when needed.
US52	Delete my Comment	High	As a Comment Poster, I want to be able to delete my comment so that I can remove it in case it contains misleading information or doesn't contribute to the discussion.

Table 6: Comment Poster's user stories.

2.6. Administrator

Identifier	Name	Priority	Description
US61	Delete a News Post	High	As an Administrator, I want to be able to delete a news post so that I can remove it in case it contains misleading information.
US62	Delete a Comment	High	As an Administrator, I want to be able to delete a comment so that I can remove it in case it contains misleading information or doesn't contribute to the discussion.
US63	Delete/Ban an account	High	As an Administrator, I want to be able to delete an account so that I can ban members that post offensive/misleading content on the website.
US64	Delete a Topic	High	As an Administrator, I want to be able to delete a topic so that I can remove topics that are offensive or contain misleading information.
US65	View Administrator Page	High	As an Administrator, I want to have an admin page that contains all the reported content on the website (posts, members and topics) so that I can easily remove it if needed.

Table 7: Administrator's user stories.

3. Supplementary Requirements

3.1. Business rules

Identifier	Name	Description
BR01	Rating System	A member can only upvote OR downvote a news post/comment, not both at the same time.
BR02	News Aura Score	A News Aura Score is calculated by the following formula: News Post's Number of Upvotes - News Post's Number of Downvotes.
BR03	Comment Aura Score	A Comment Aura Score is calculated by the following formula: Comment's Number of Upvotes - Comment's Number of Downvotes.
BR04	Member's Aura score	A Member's Aura score is calculated according to the formula: All Member's News Aura + All Member's Comment Aura.
BR05	Auto Upvote	A newly created post always has its creator's own upvote automatically (although it can be removed later).
BR06	Edited Post	An edited post is adequately marked with an indicator (edited).
BR07	Edited Comment	An edited comment is adequately marked with an indicator (edited).
BR08	News Poster	A News Poster is identified with a special icon (A microphone) when they comment on their own post.
BR09	Administrator	An Administrator is identified with a special icon (A shield) when they post or comment in the website.
BR10	New News Posts	A News Post must always have at least 1 topic assigned to it.
BR11	New Topics	If, when creating a news post, a Member selects a topic that doesn't exist yet, a new page for that topic is created.
BR12	Deleted Member	A deleted Member has all their content on the website deleted (profile, news posts and comments).
BR13	Deleted Topic	A deleted Topic has all its content deleted (news posts and comments).
BR14	Comment Date	A Comment's date must be after its Post's date

3.2. Technical requirements

Identifier	Name	Description
TR01	Availability	The system must be available 99 percent of the time in each 24-hour period.
TR02	Accessibility	The system must ensure that everyone can access the pages, regardless of whether they have any handicap or not, or the Web browser they use.
TR03	Usability	The system should be simple and easy to use.
TR04	Performance	The system should have response times shorter than 2s to ensure the user's attention.
TR05	Web application	The system should be implemented as a Web application with dynamic pages (HTML5, JavaScript, CSS3 and PHP).
TR06	Portability	The server-side system should work across multiple platforms (Linux, Mac OS, etc.).
TR07	Database	The PostgreSQL 13.0 database management system must be used.
TR08	Security	The system shall protect information from unauthorized access through the use of an authentication and verification system.
TR09	Robustness	The system must be prepared to handle and continue operating when runtime errors occur.
TR10	Scalability	The system must be prepared to deal with the growth in the number of users and their actions.
TR11	Ethics	The system must respect the ethical principles in software development (for example, the password must be stored encrypted to ensure that only the owner knows it).

3.3. Restrictions

Identifier	Name	Description
C01	Deadline	The system should be ready to be used at the beginning of the Summer, so gamers can use the website during their holidays.

---

A3: User Interface Prototype

This user interfaces prototype (or horizontal prototype) has the following goals:

1. Help to identify and describe the user requirements, and raise new ones;
2. Preview and empirically test the user interface of the product to be developed;
3. Enable quick and multiple iterations on the design of the user interface.

This artefact includes four elements:

1. [Overview of the interface elements and features common to all pages](#1. Interface and common features);
2. [Overview of the information system from the viewpoint of the users (sitemap)](#2. Sitemap);
3. [Identification and description of the main interactions with the system, organized as sequences of screens (wireflows)](#3. Wireflows);
4. [Overview of all the interfaces featuring their main content.](#4. Interfaces)

The interface's descriptions are presented on the end of the document.

1. Interface and common features

Gameorama is a web application based on HTML5, JavaScript, and CSS. The user interface was implemented using the Bootstrap framework.

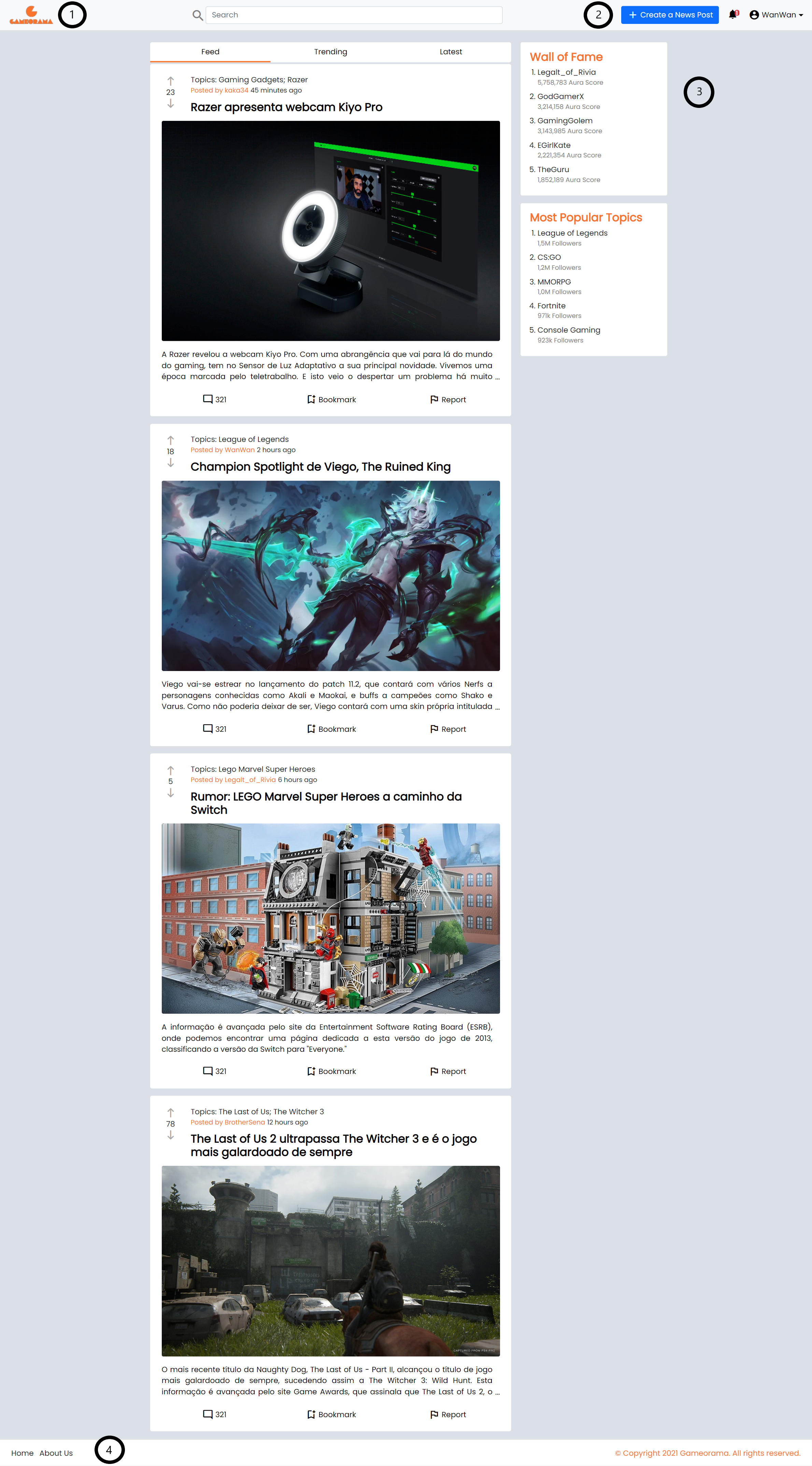

Desktop	Mobile

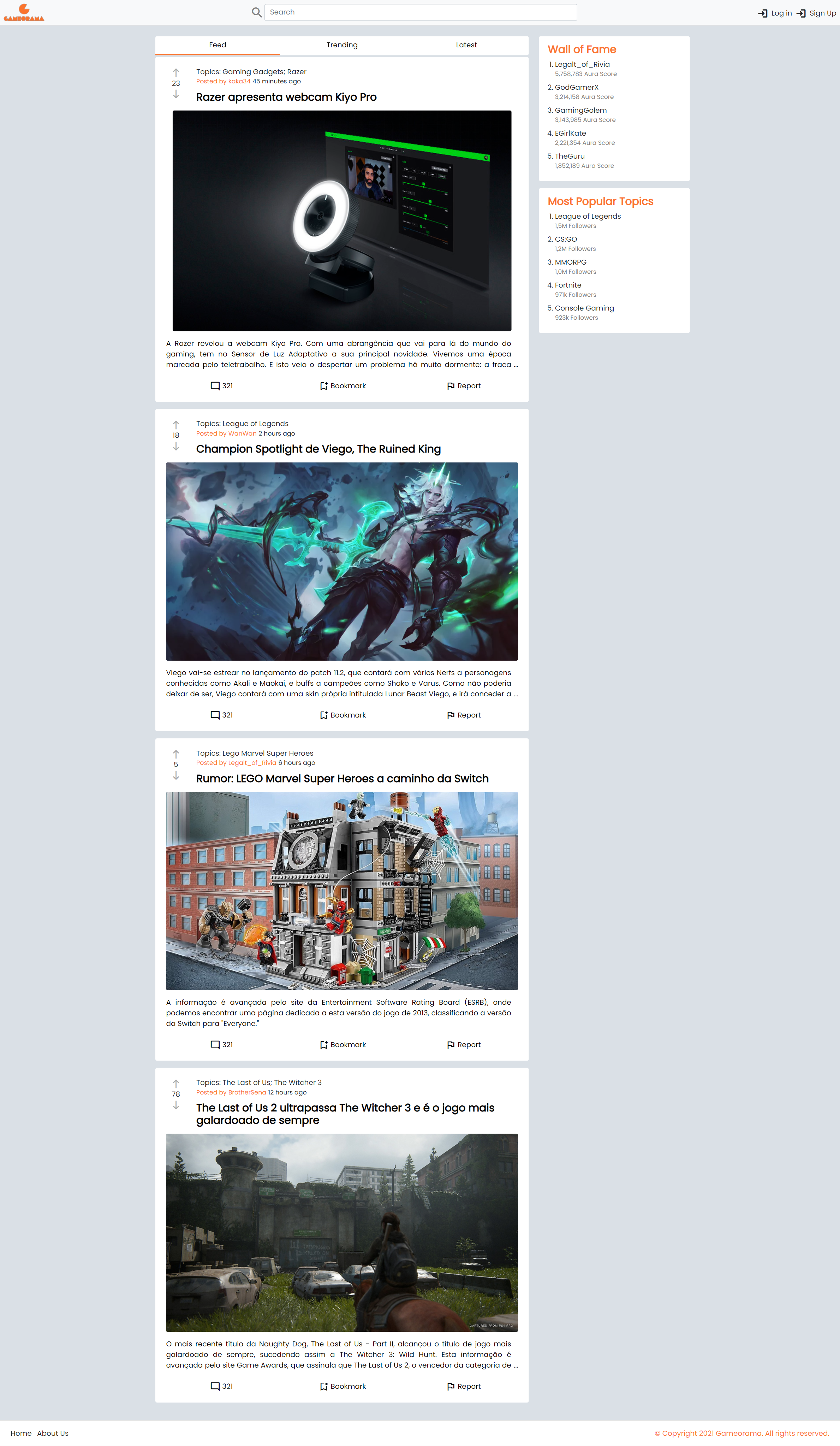

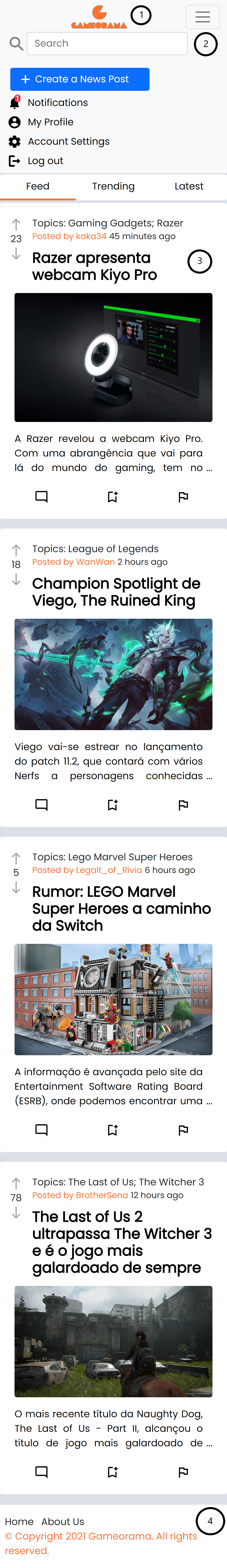

Figure 1: Interface's guidelines.

1. Page Logo
2. Navbar
3. Page Content
4. Footer

In this figure some characteristics common to all pages are highlighted:

• We opted for a "net design" to have a flowing web page layout that suits various screen sizes, from desktop 19" or more, to 11" tablets, or even to 4" smartphones.

• The common links and buttons to the various pages maintain their position to deliver a consistent user experience.

• Most buttons and clickable text are highlighted in blue (with a few exceptions) when hovered while the rest of the website maintains a consistent color palette of orange, black and white.

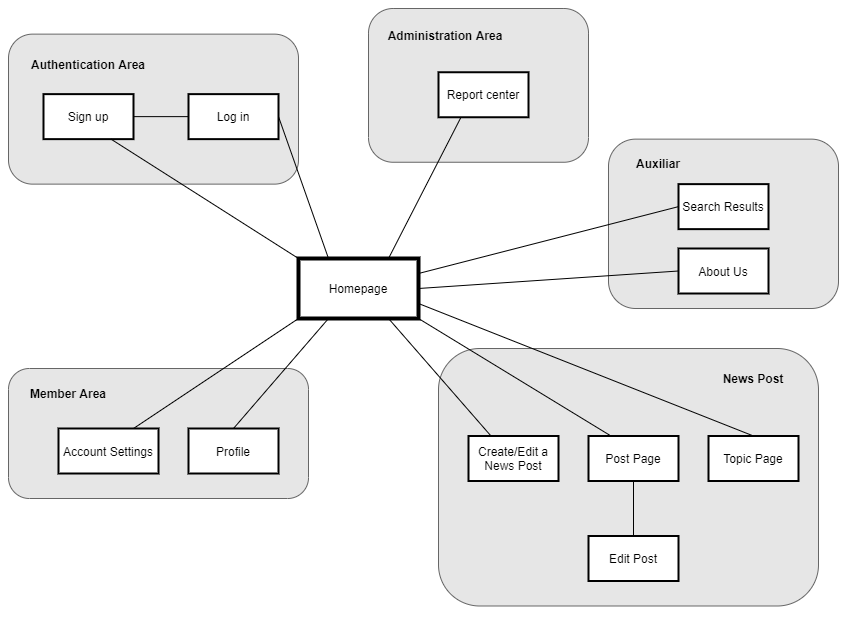

2. Sitemap

A sitemap is a visual representation of the relationship between the different pages of a website that shows how all the information fits together.

The sitemap gives the project team an idea of how the website is going to be build by helping to clarify the information hierarchy.

Figure 2: Sitemap.

3. Wireflows

Wireflows are presented to represent some of the main interactions with the system using a sequence of interfaces and explaining how navigation is done between them.

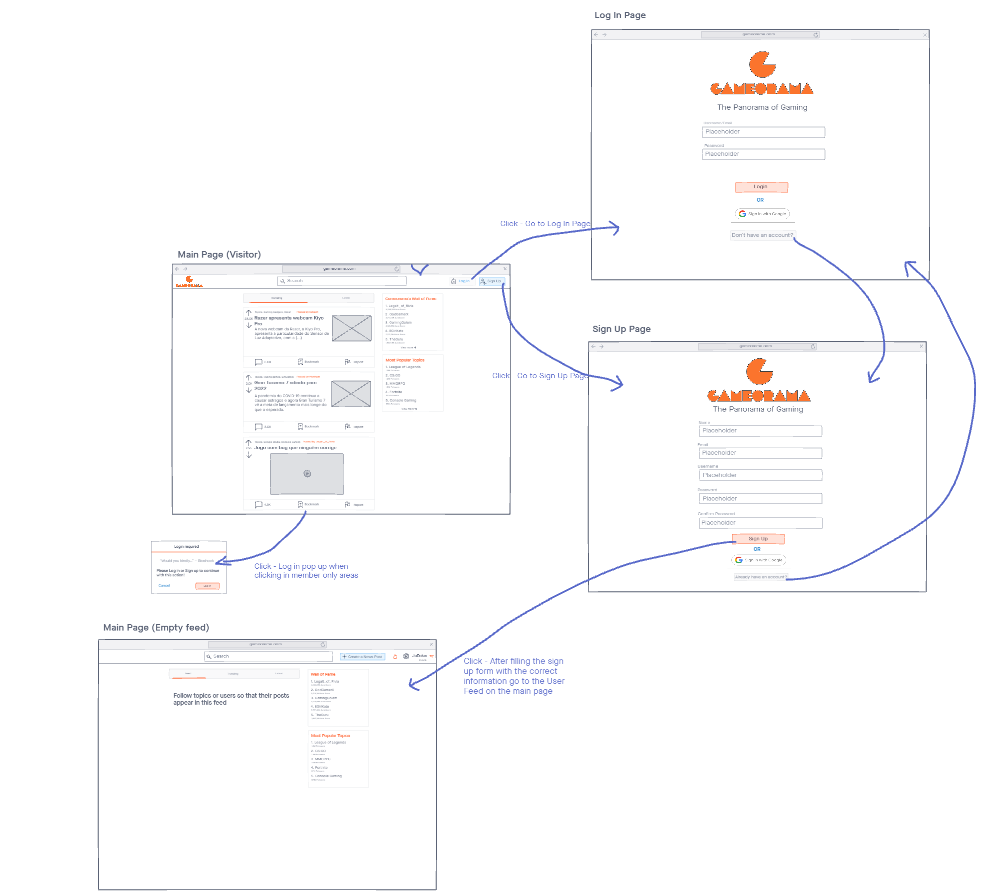

Figure 3: Wireflow centered around user authentication.

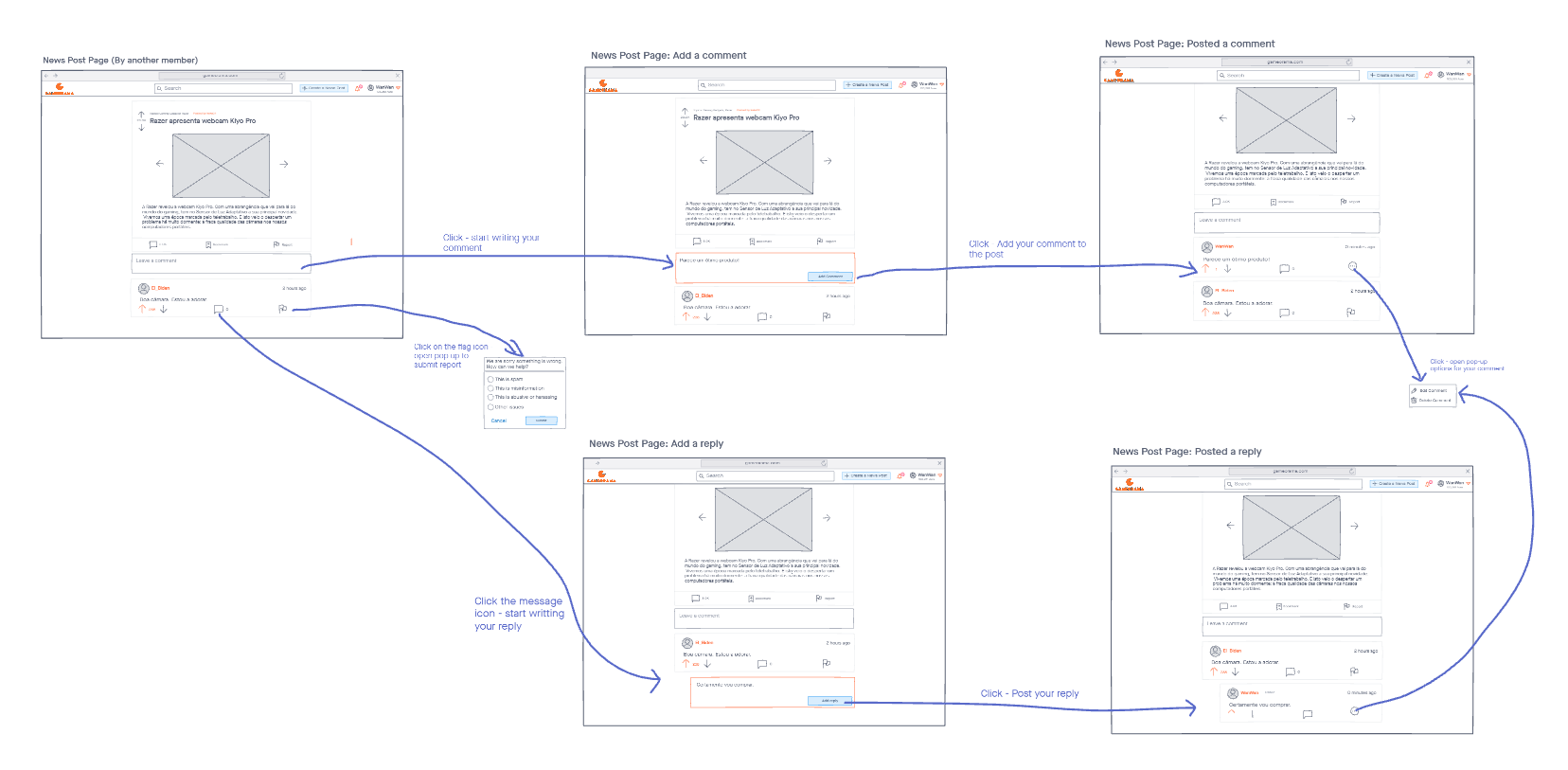

Figure 4: Wireflow centered around News post interaction (posting a comment).

Figure 5: Wireflow centered around topic/post page navigation and post creation/edition.

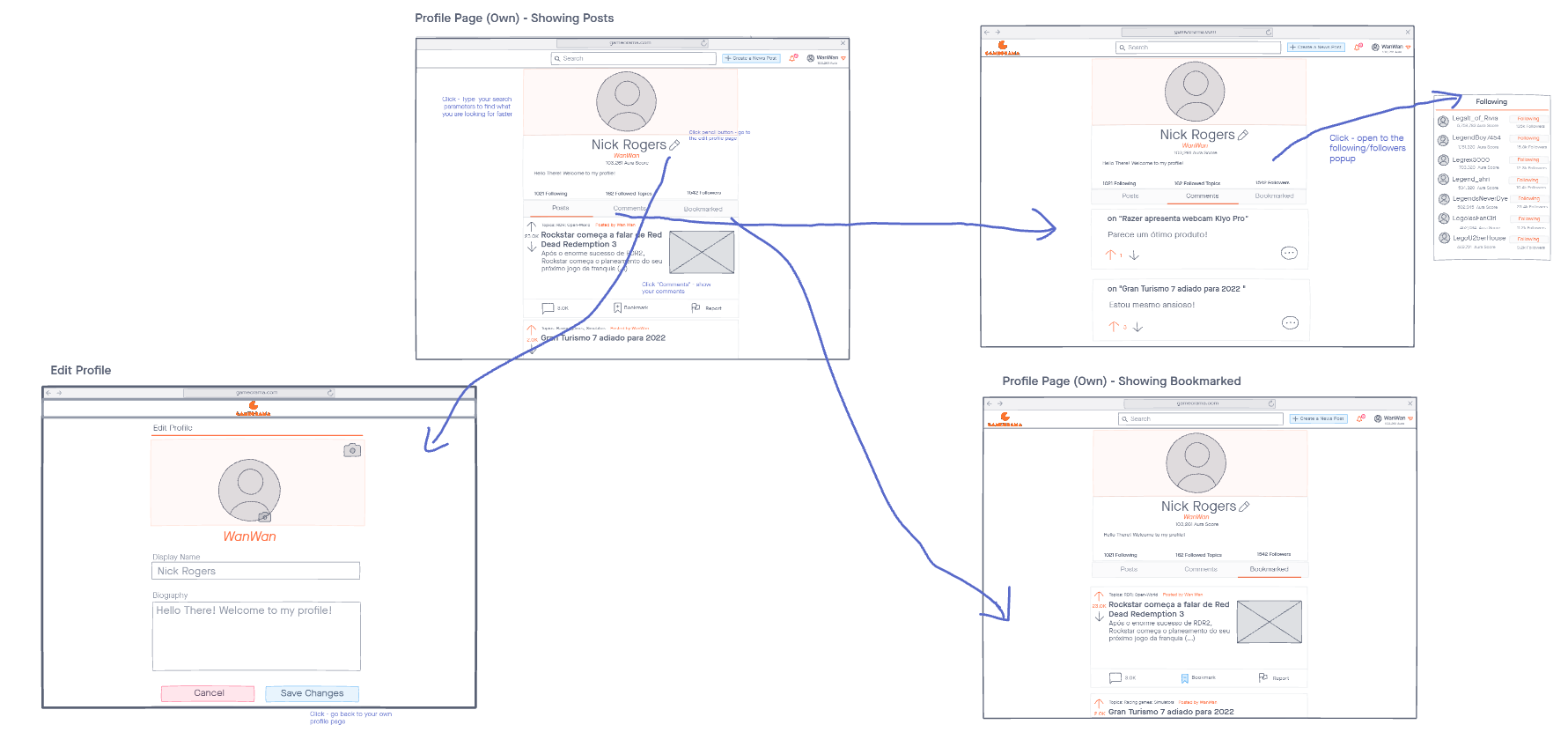

Figure 6: Wireflow centered around user profile navigation.

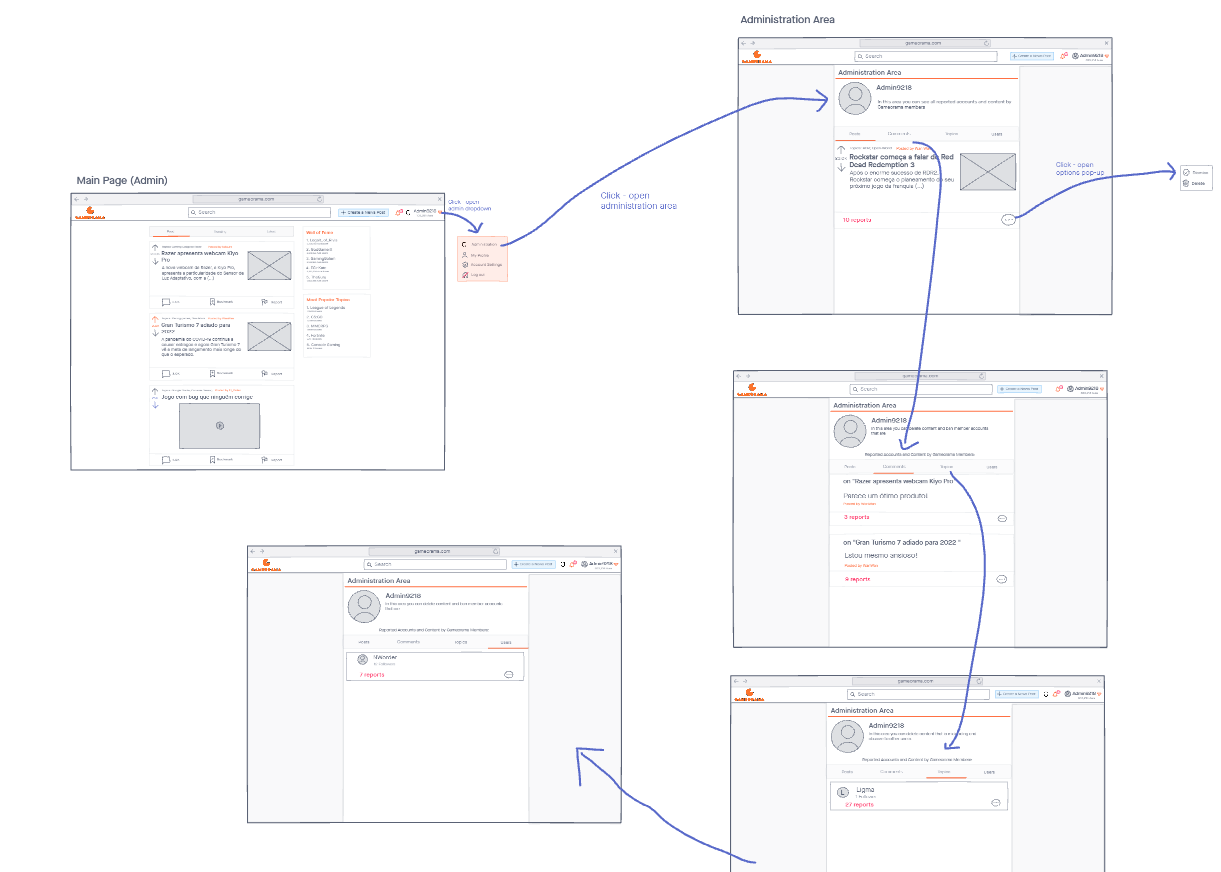

Figure 7: Wireflow centered around administrator features.

Figure 8: Complete website Wireflow.

For the complete desktop and mobile wireframes/wireflows: InVision Project

4. Interfaces

The following interfaces describe the main content of the web pages and their relative priority and help the project team previewing the features and behavior of the final product's different screens, both their desktop (left) and mobile (right) versions.

1. Home Page
2. Search Page
3. Topic Page
4. Post Page
5. Create Post Page
6. Edit Post Page
7. User Profile Page
8. Edit Profile Page
9. Account Settings Page
10. Login Page
11. Sign Up Page
12. About Us Page
13. Administration Area Page
14. Error 404 Page

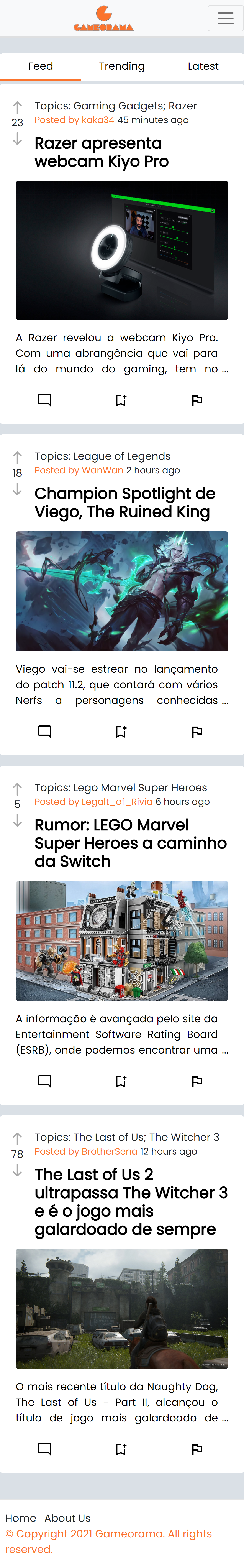

UI01: Home Page

Main website page where you can check the latest and hottest gaming news.

Desktop	Mobile

Figure 9: Home Page(Member), Home Page (Visitor), Home Page (Administrator)

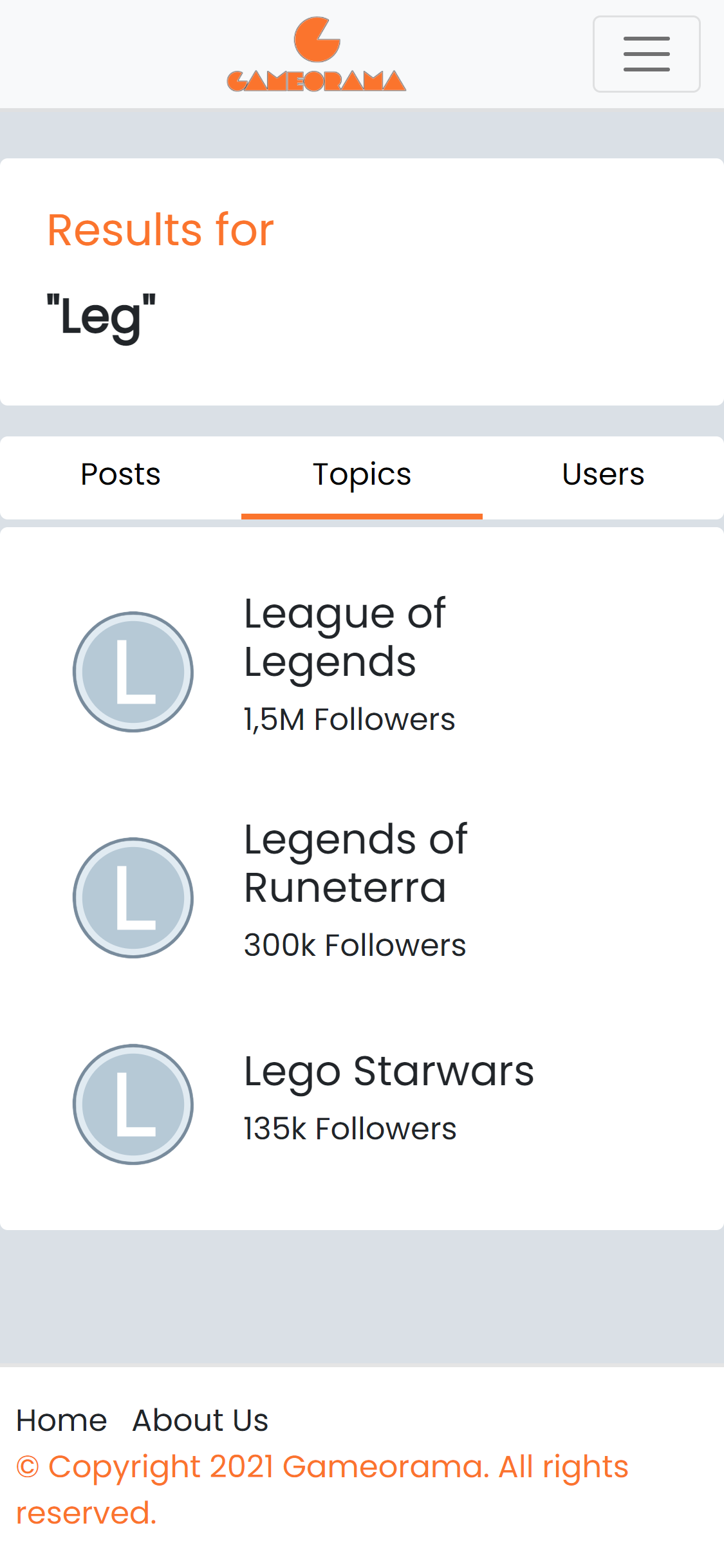

UI02: Search Page

The page where you can search posts, topics and users.

Desktop	Mobile

Figure 10: Search Page

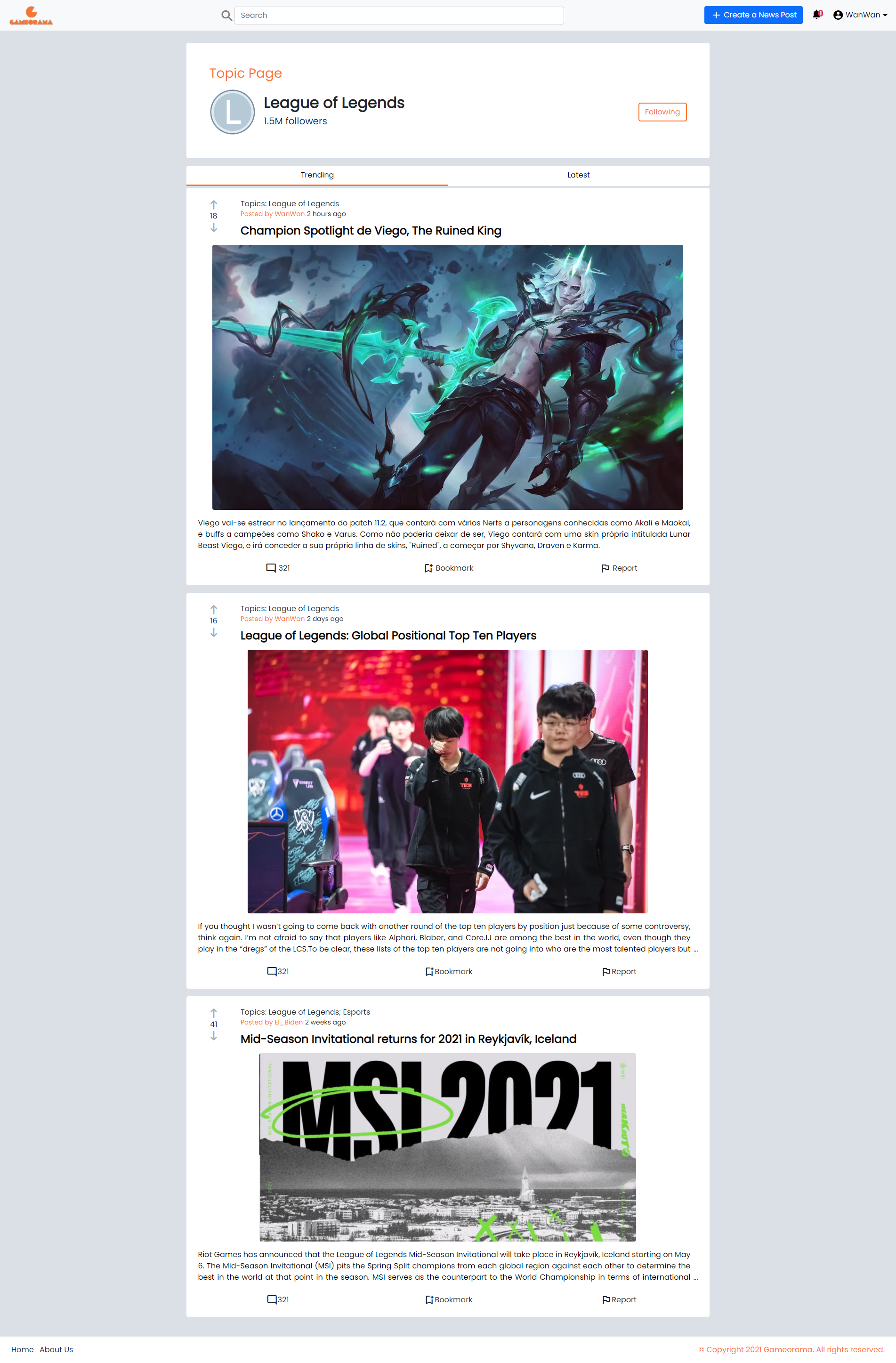

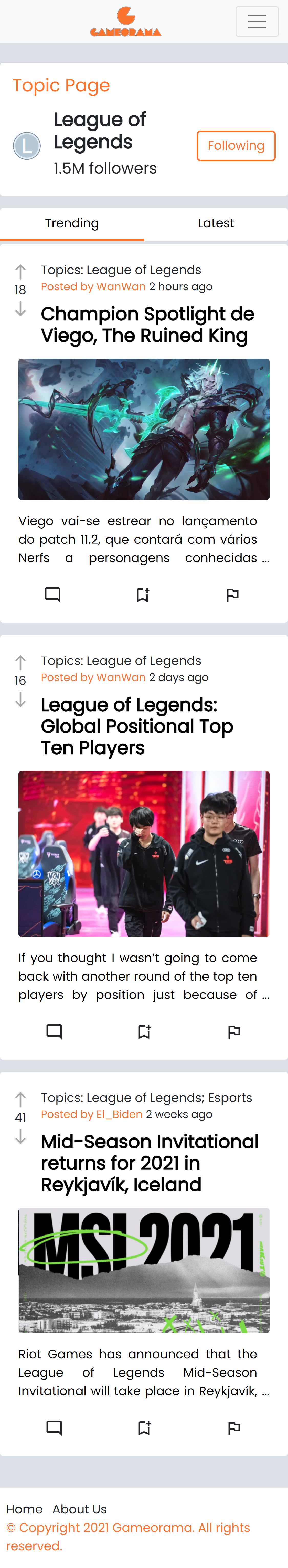

UI03: Topic Page

A page where you can see the news related to a specific topic.

Desktop	Mobile

Figure 11: Topic Page

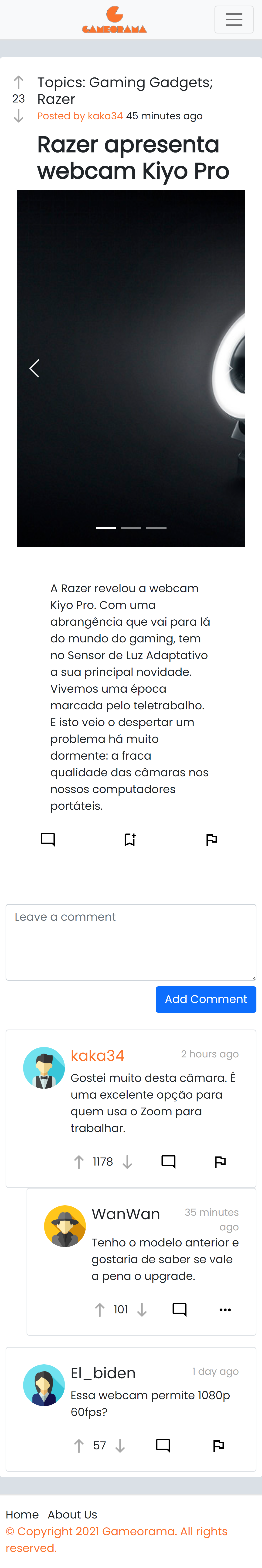

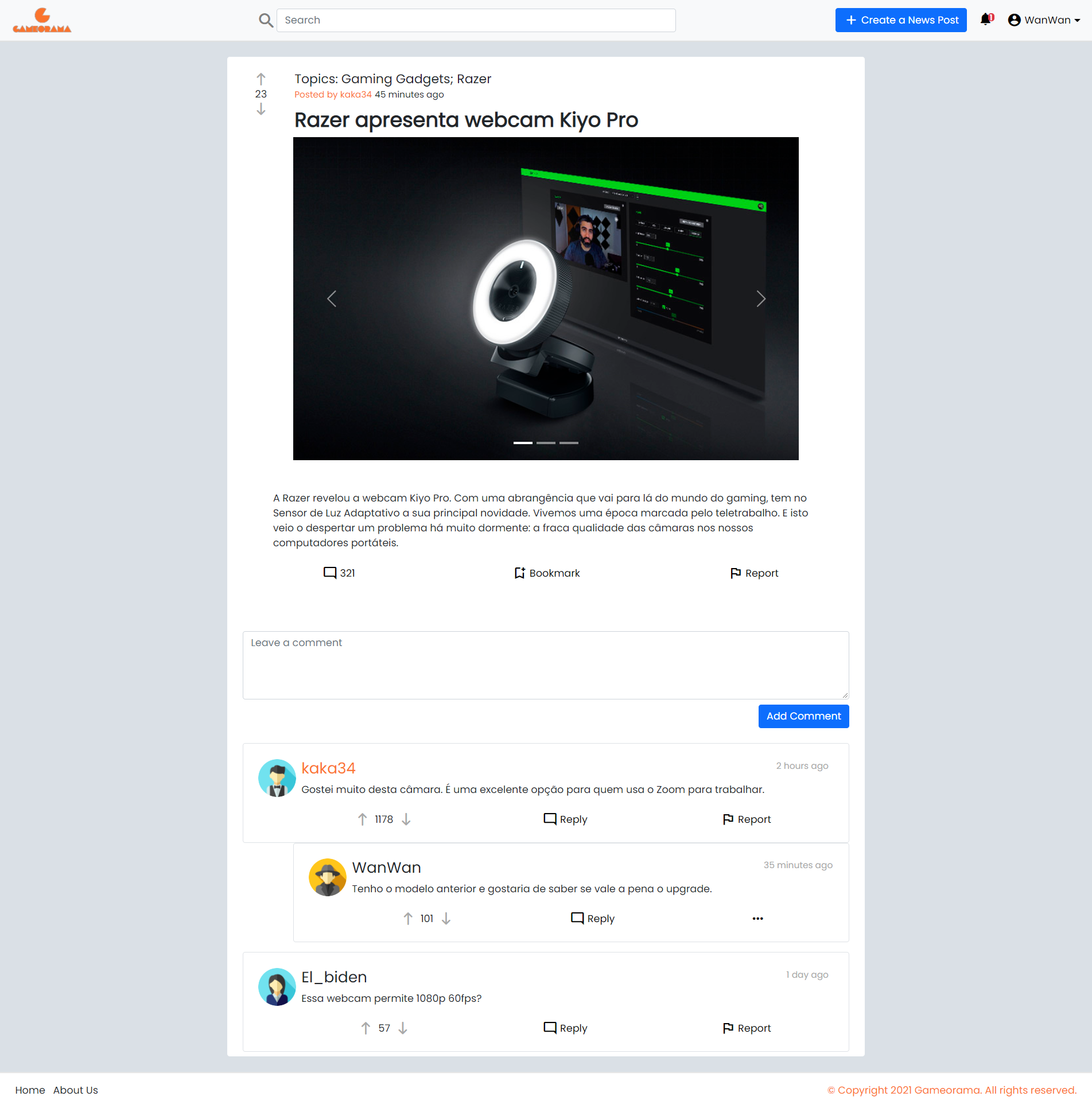

UI04: Post Page

A page where you can see the full news post and its comments.

Desktop	Mobile

Figure 12: Post Page

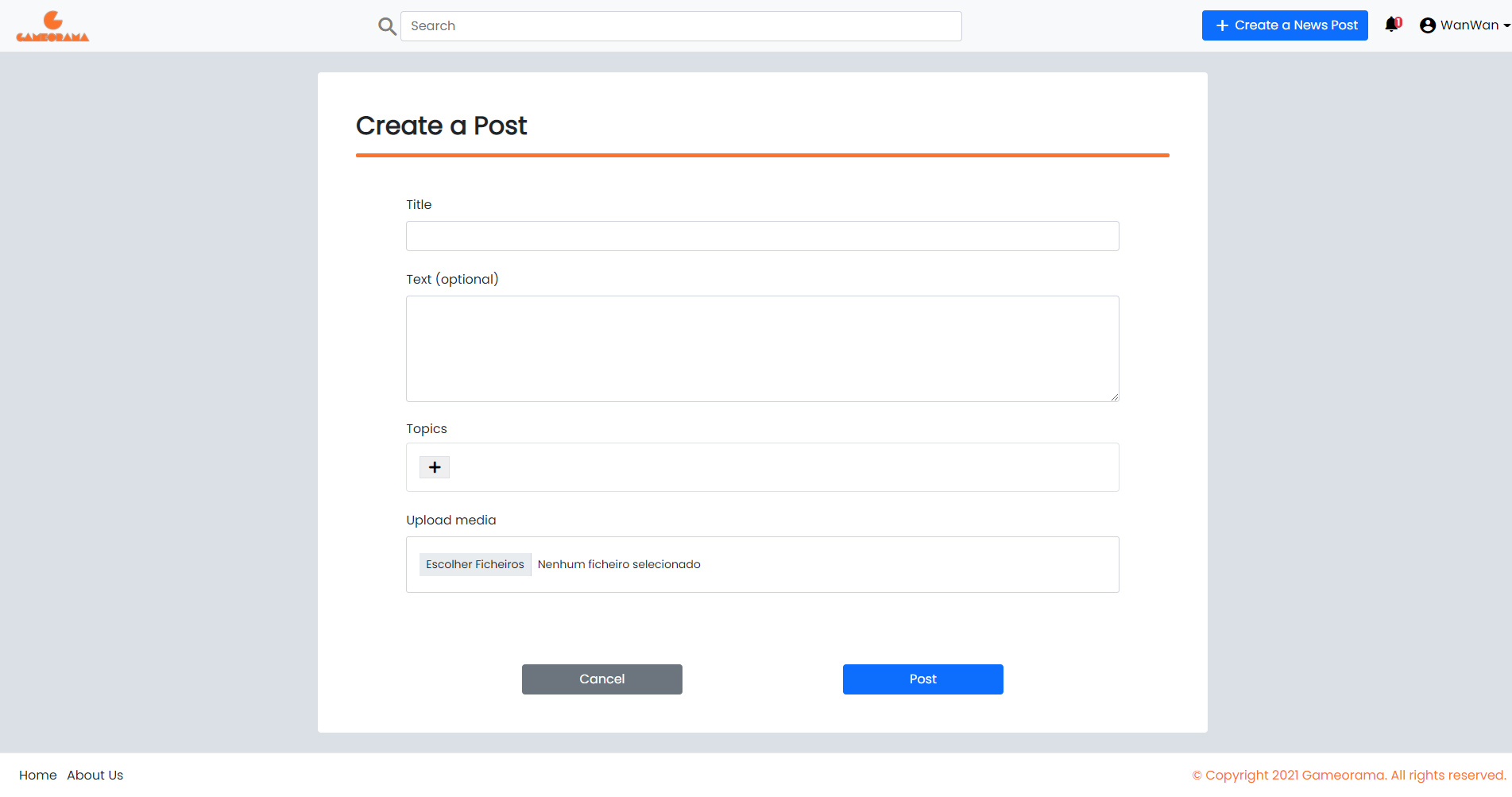

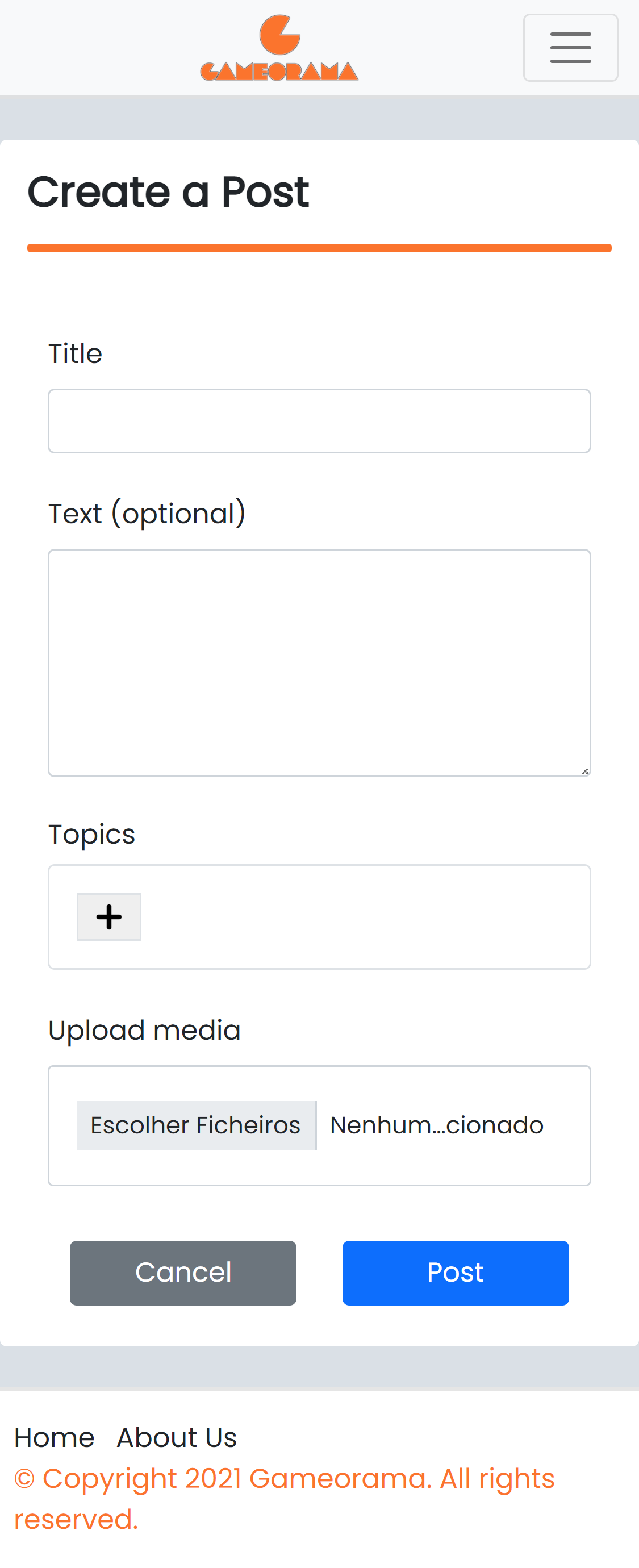

UI05: Create Post

A page where you can create a news post.

Desktop	Mobile

Figure 13: Create Post Page

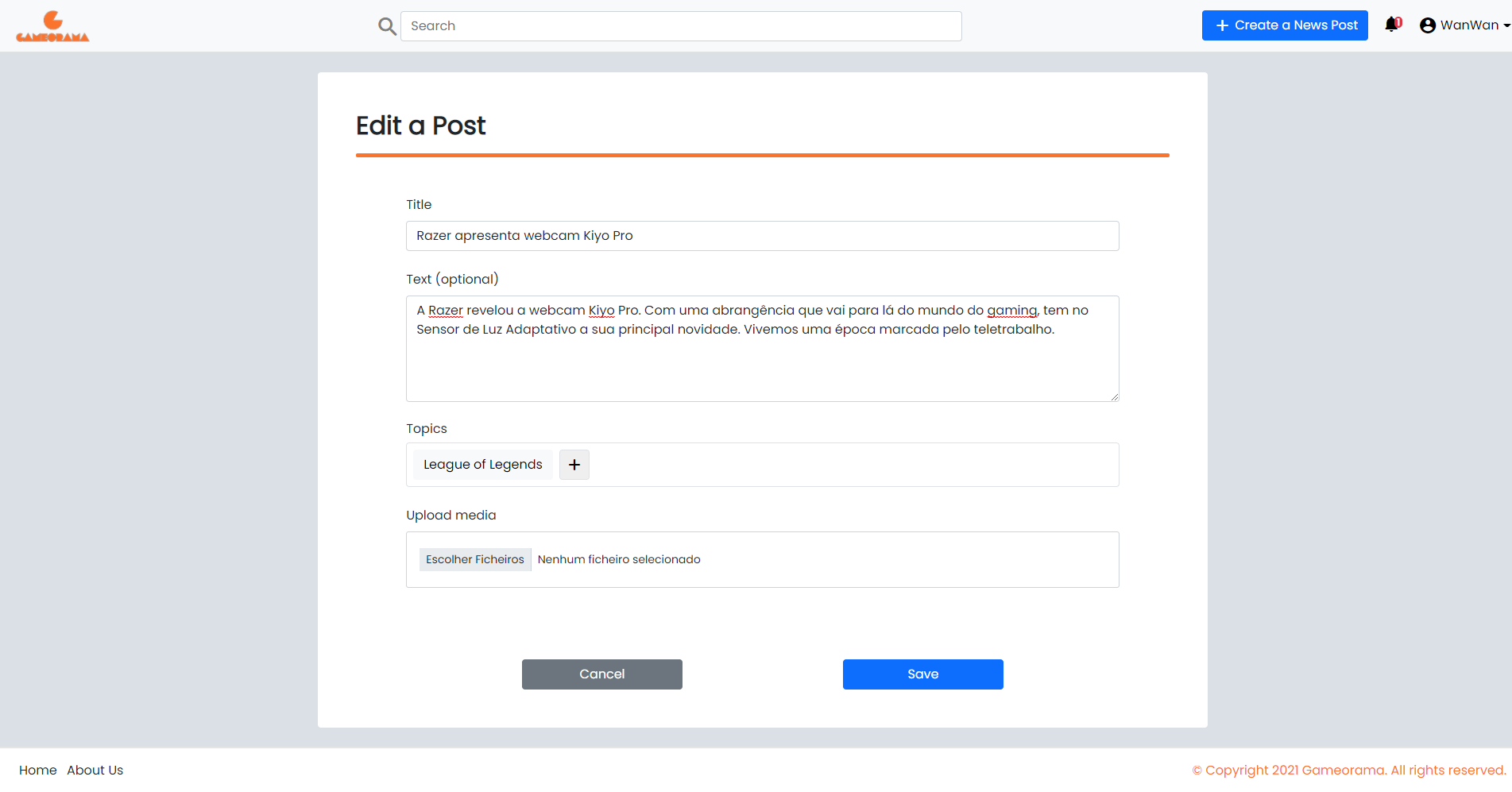

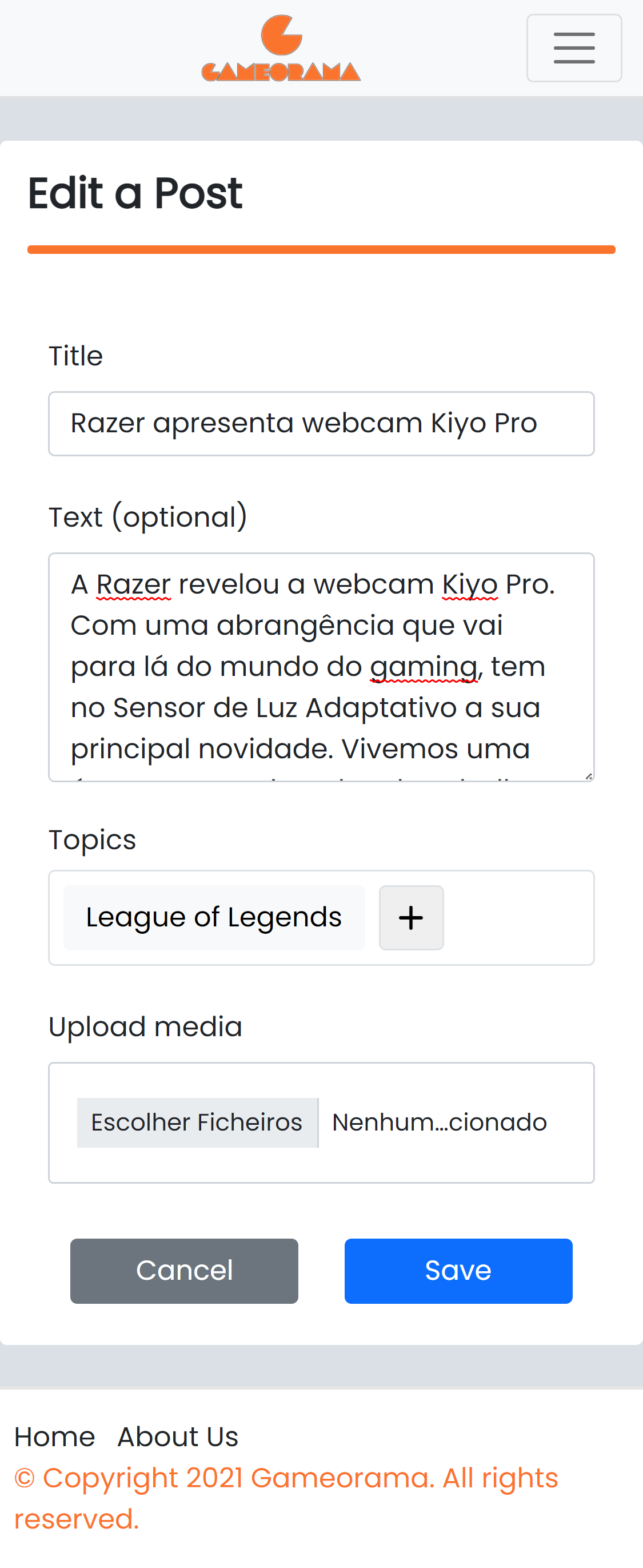

UI06: Edit Post

A page where you can edit your news posts.

Desktop	Mobile

Figure 14: Edit Post Page

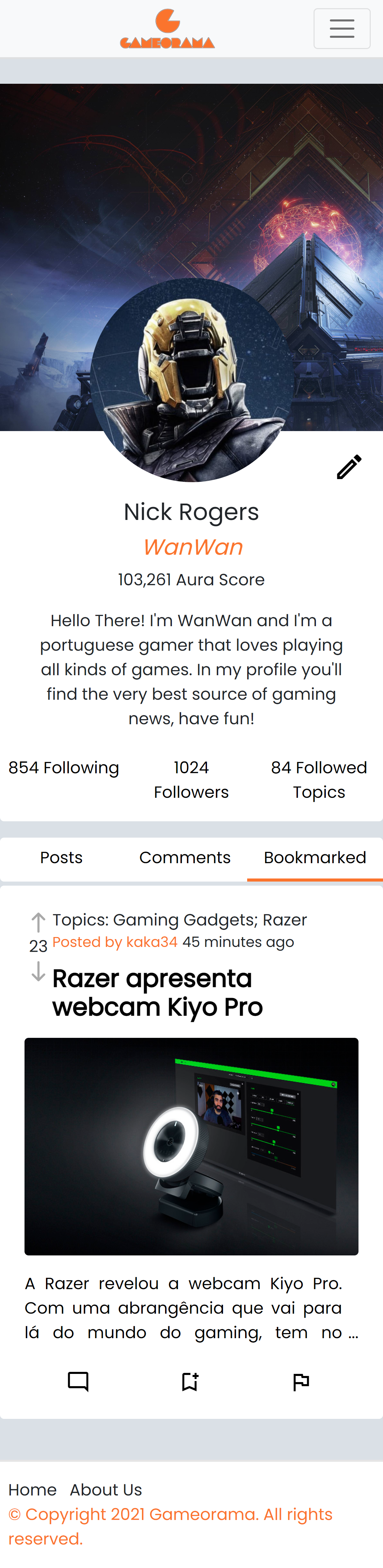

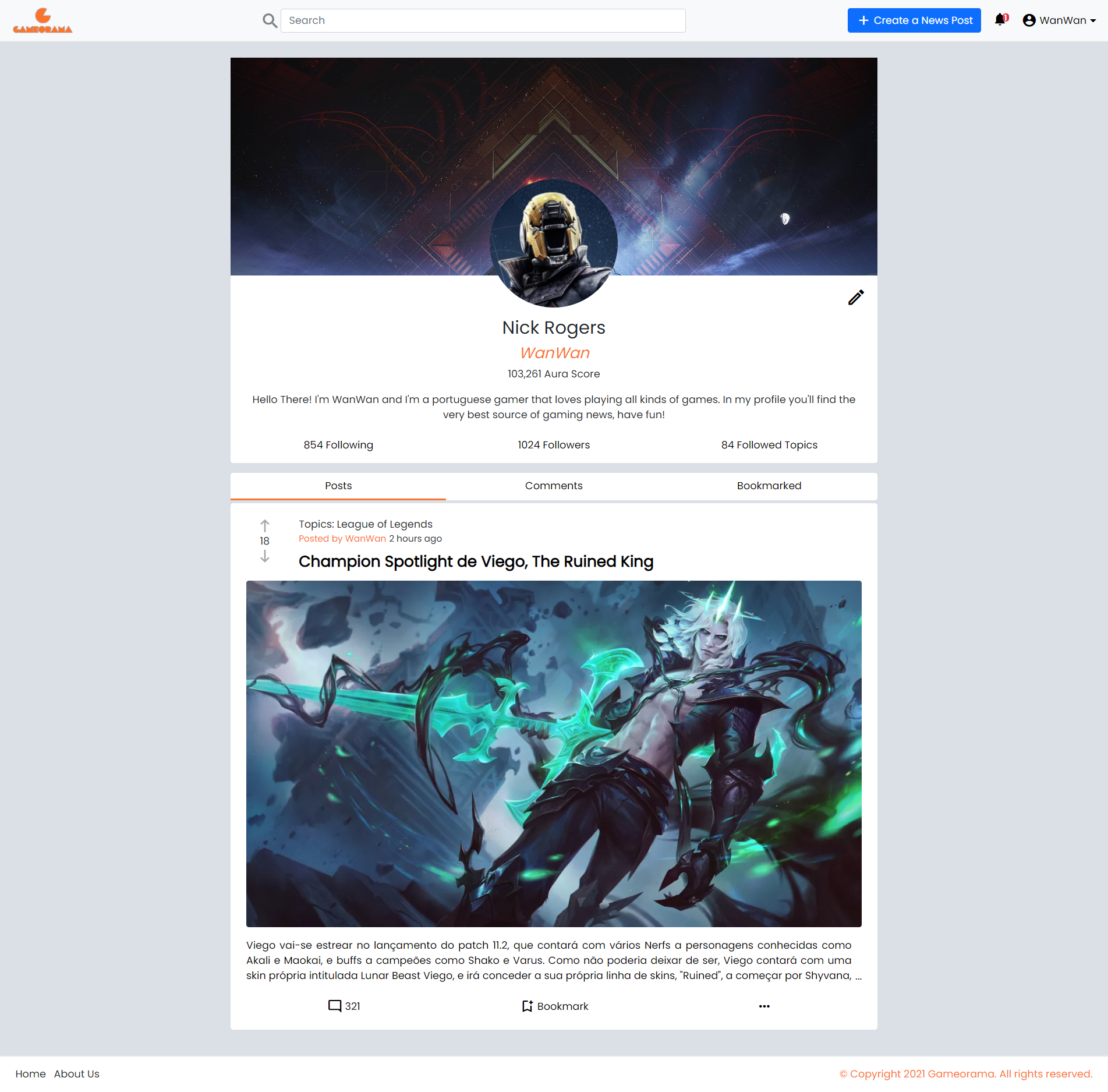

UI07: User Profile

The page where you can check your created posts and comments. You can also check your bookmarked posts here.

Desktop	Mobile

Figure 15: User Profile Page (Own), User Profile Page (Other User)

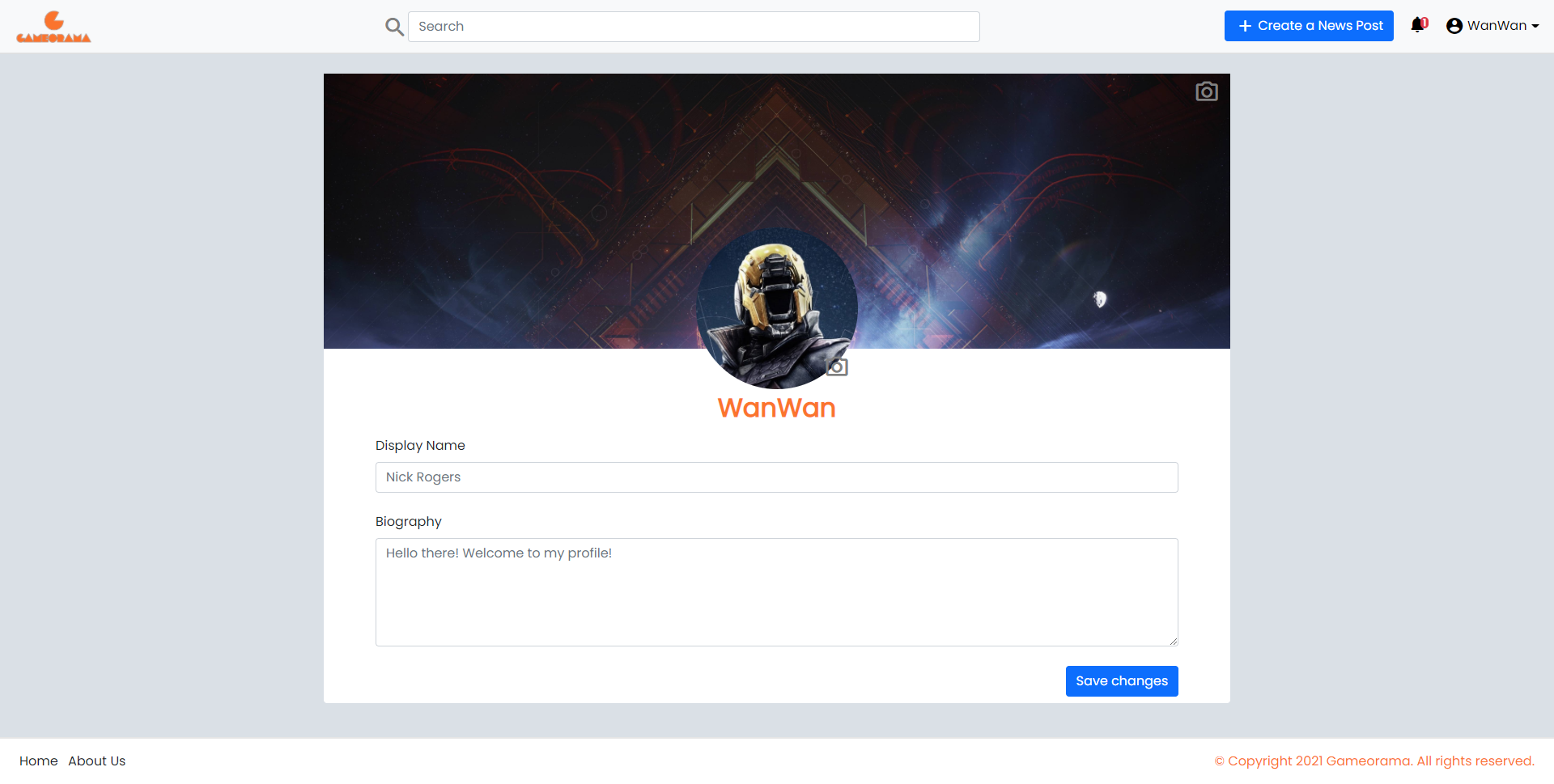

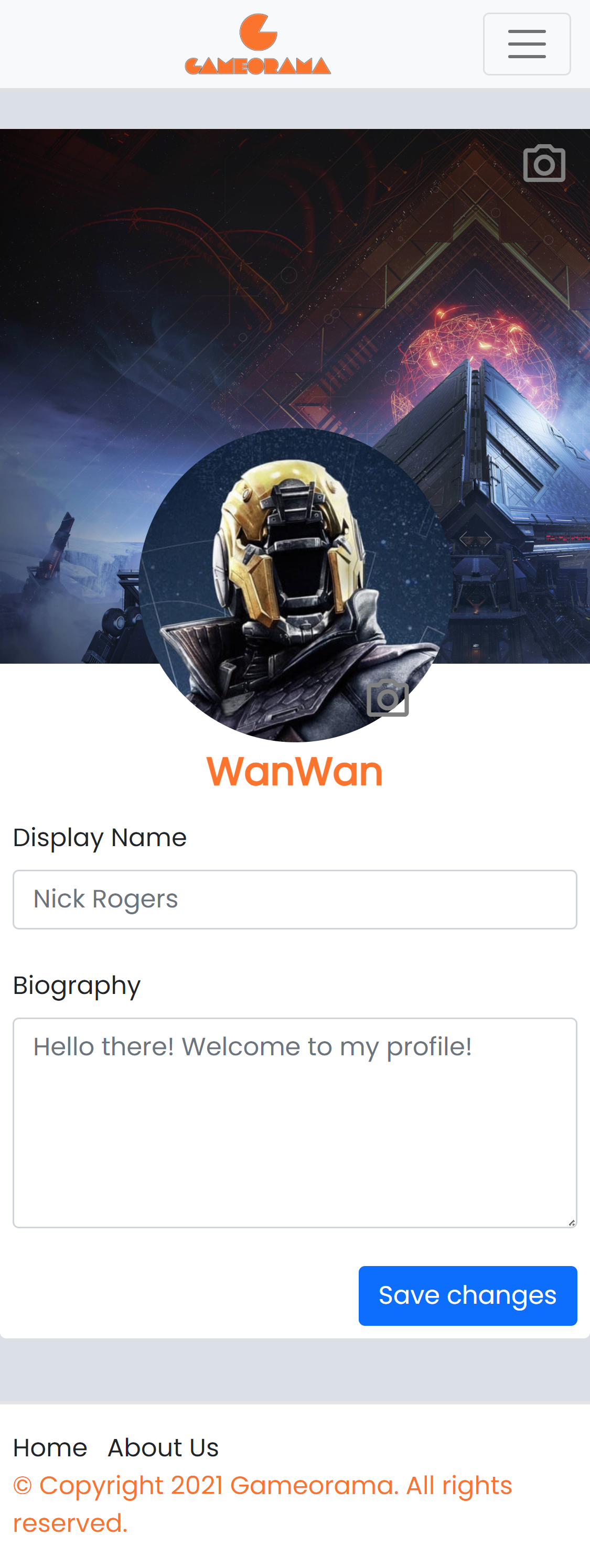

UI08: Edit Profile

The page where you can edit your name, profile/banner pictures and bio.

Desktop	Mobile

Figure 16: Edit Profile Page

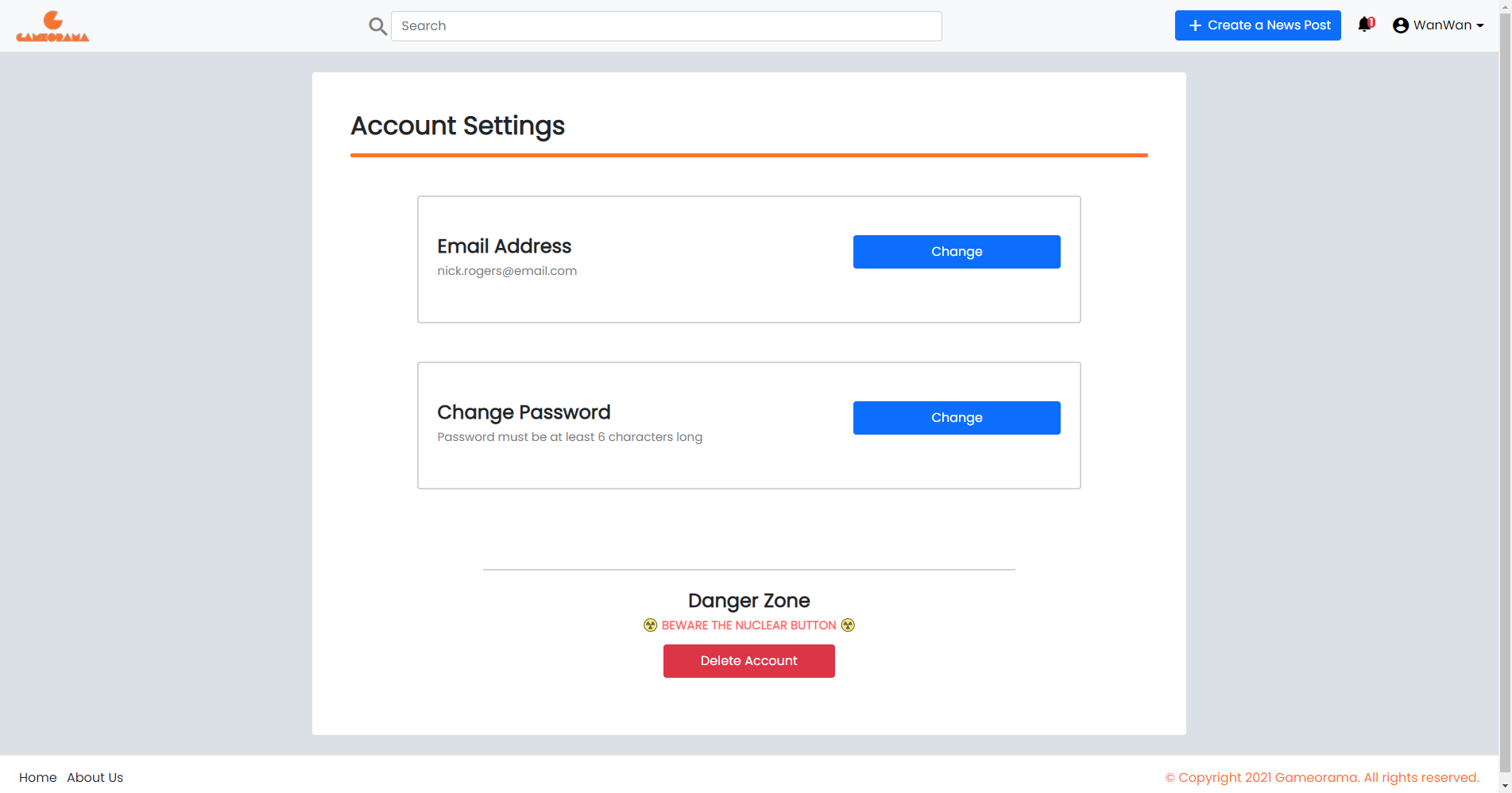

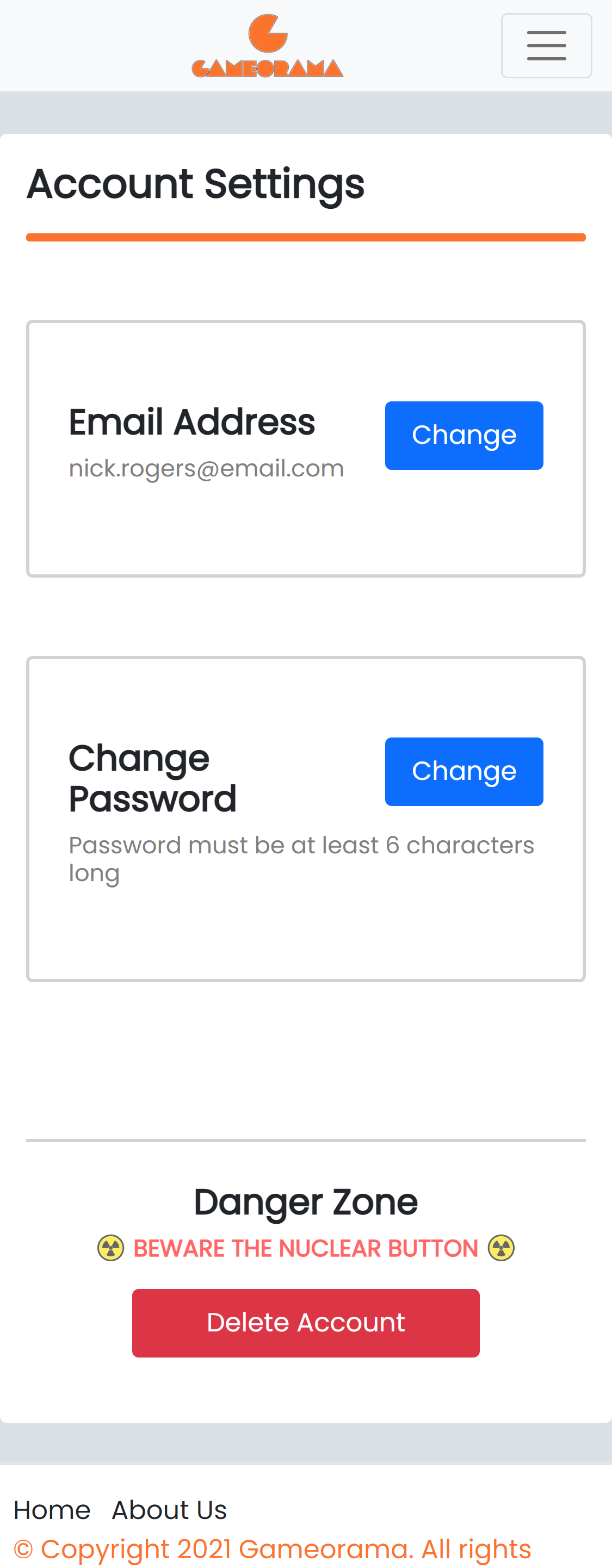

UI09: Account Settings

The page where you can edit your email and password.

Desktop	Mobile

Figure 17: Account Settings Page

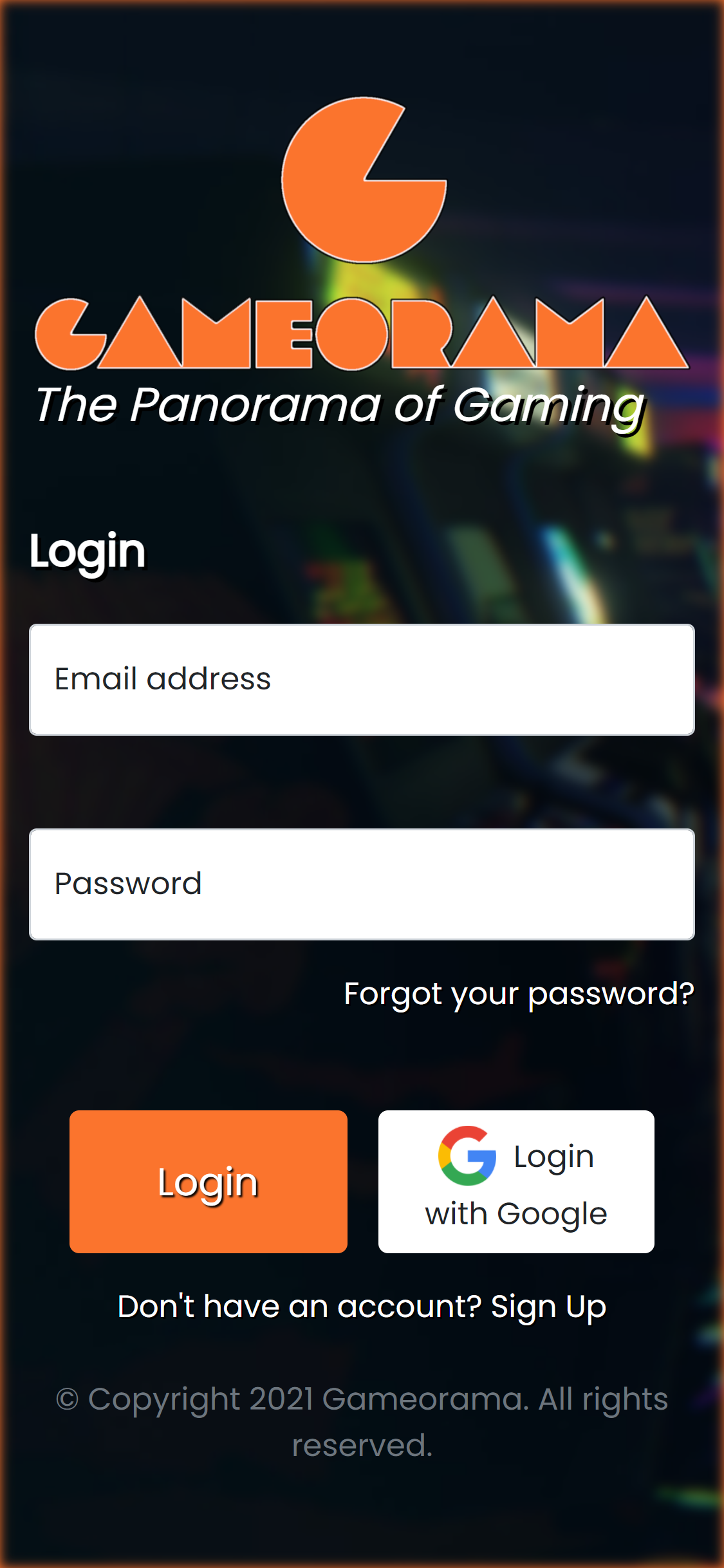

UI10: Login

The page where you can login to your account.

Desktop	Mobile

Figure 18: Login Page

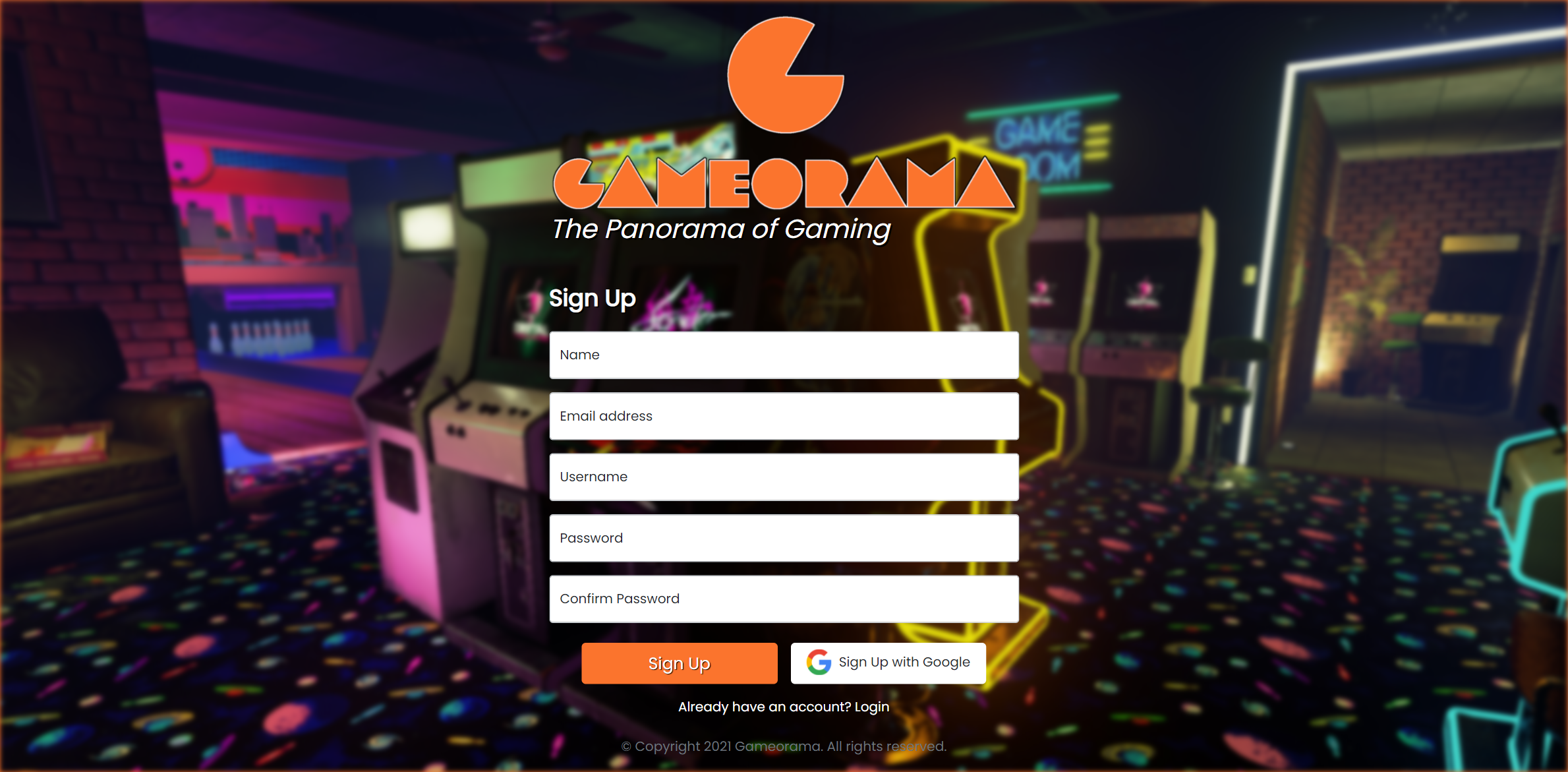

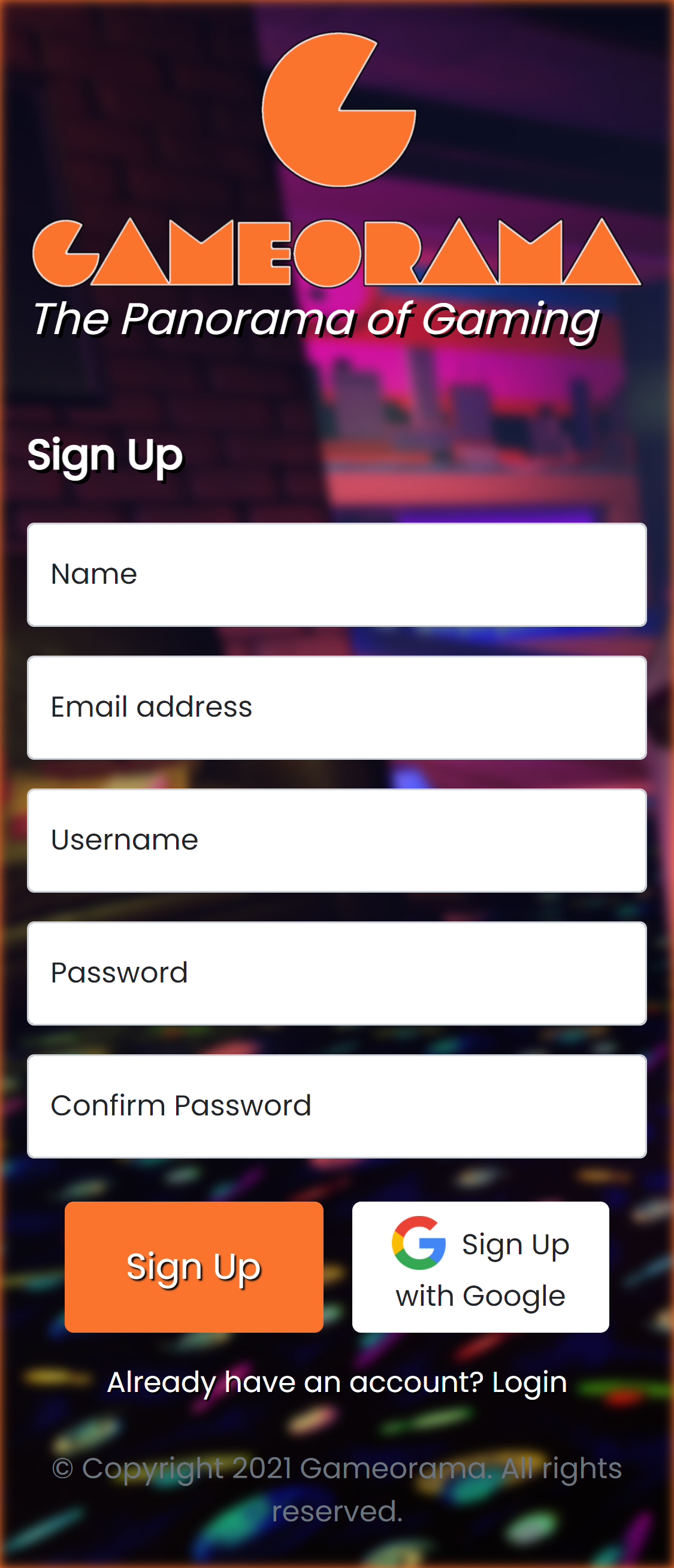

UI11: Sign Up

The page where you can create a new account.

Desktop	Mobile

Figure 19: Sign Up Page

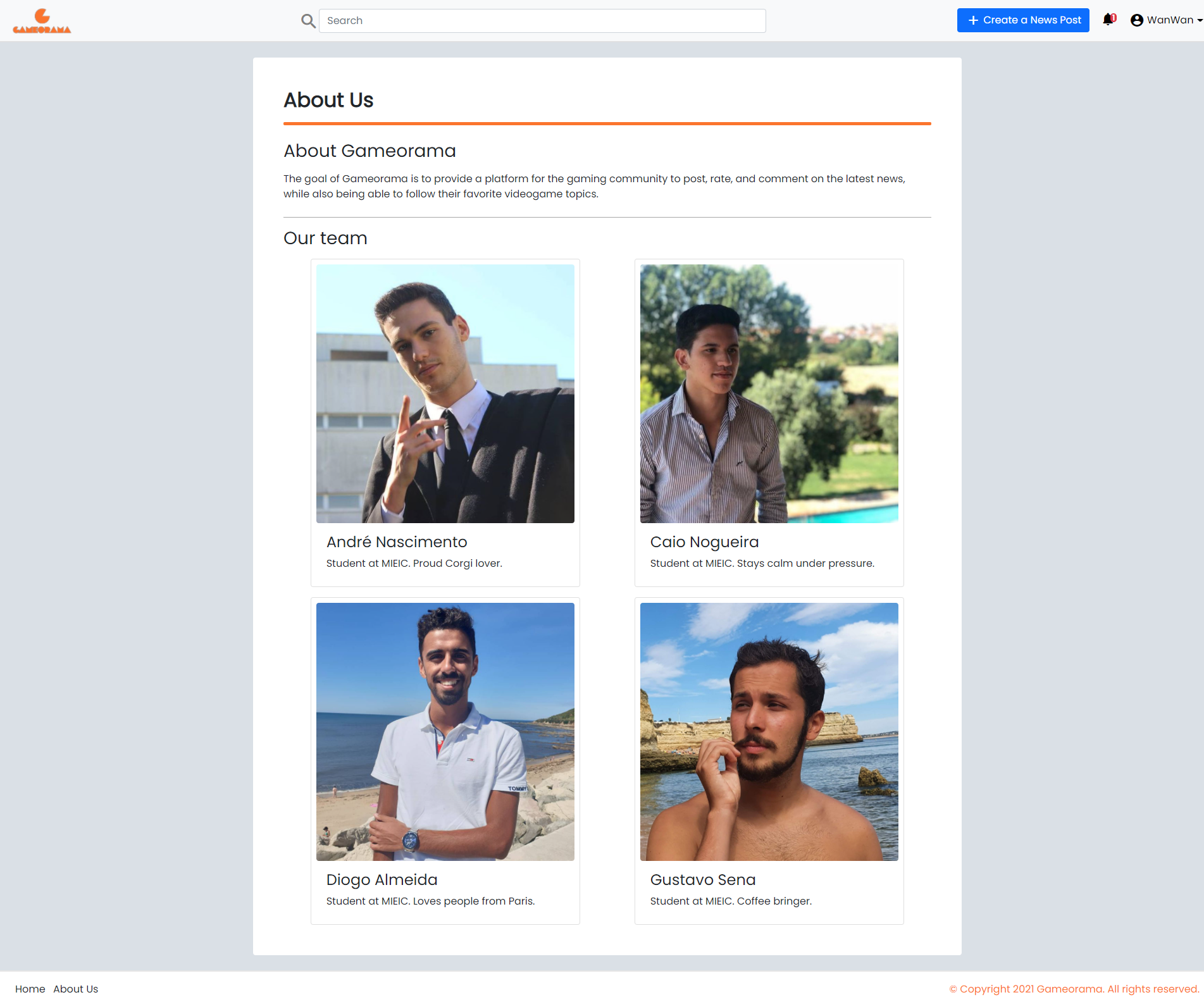

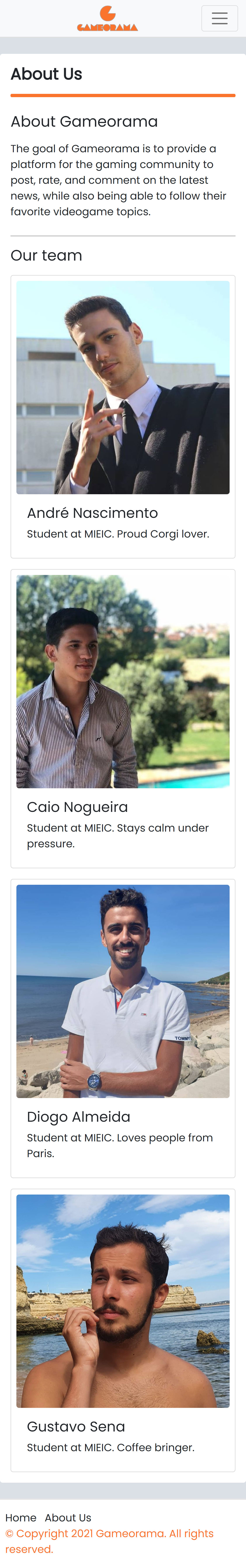

UI12: About Us

The page where you can consult the website's goals and creators.

Desktop	Mobile

Figure 20: About Us Page

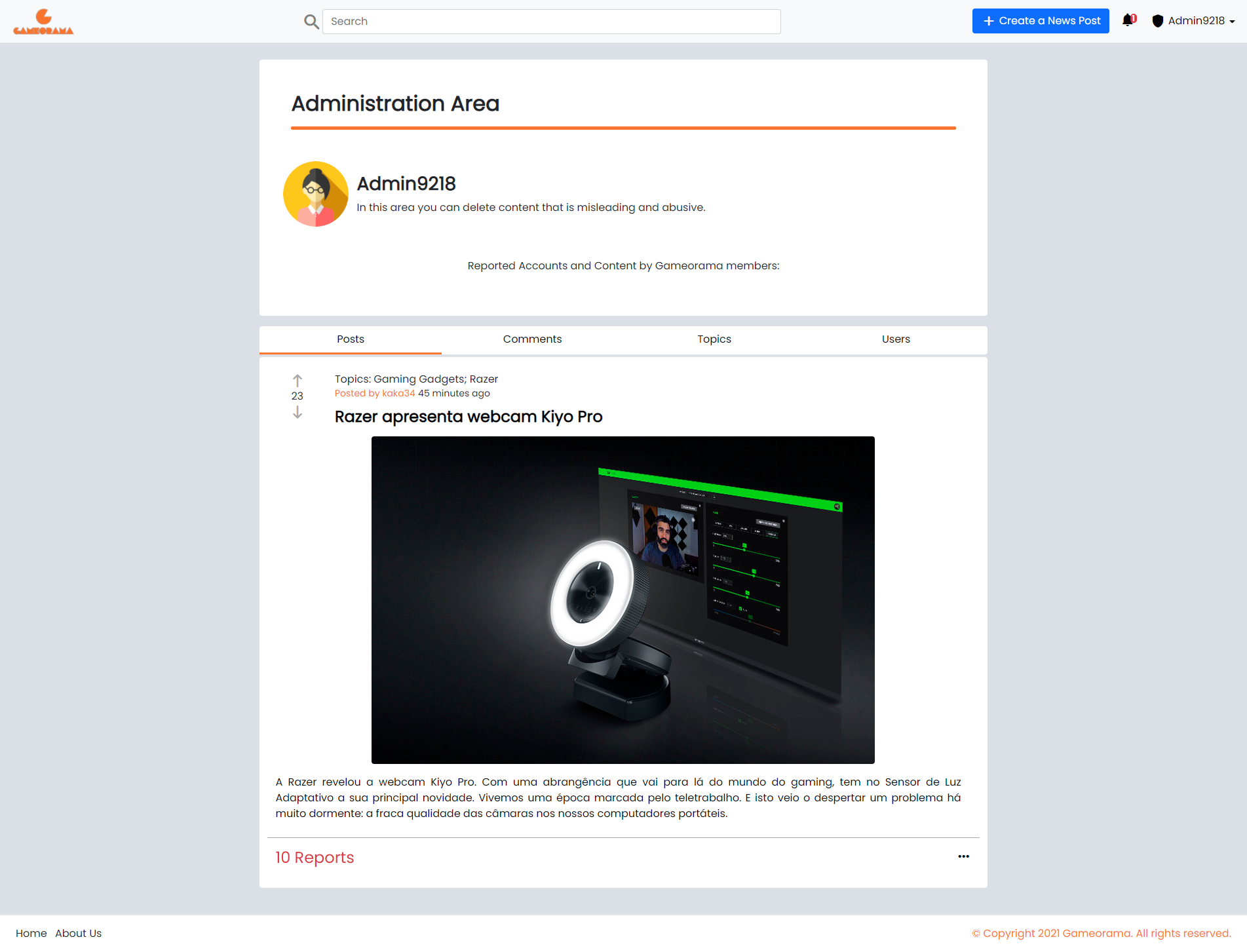

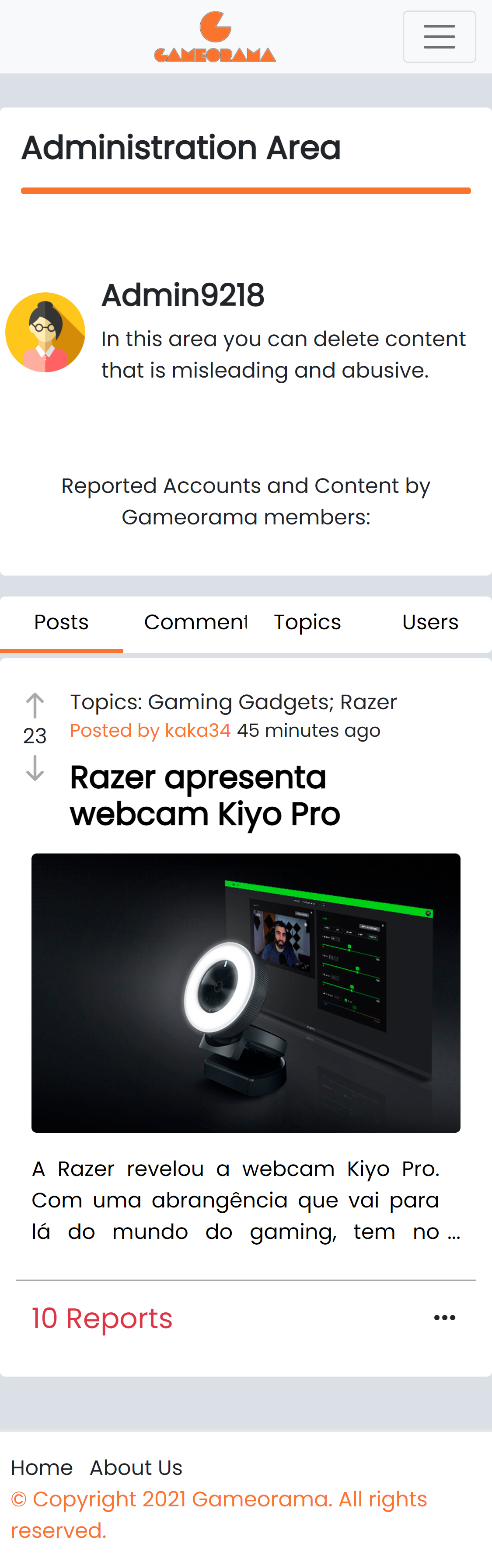

UI13: Administration Area

The page where admins can control and delete reported content on the website.

Desktop	Mobile

Figure 21: Administration Page

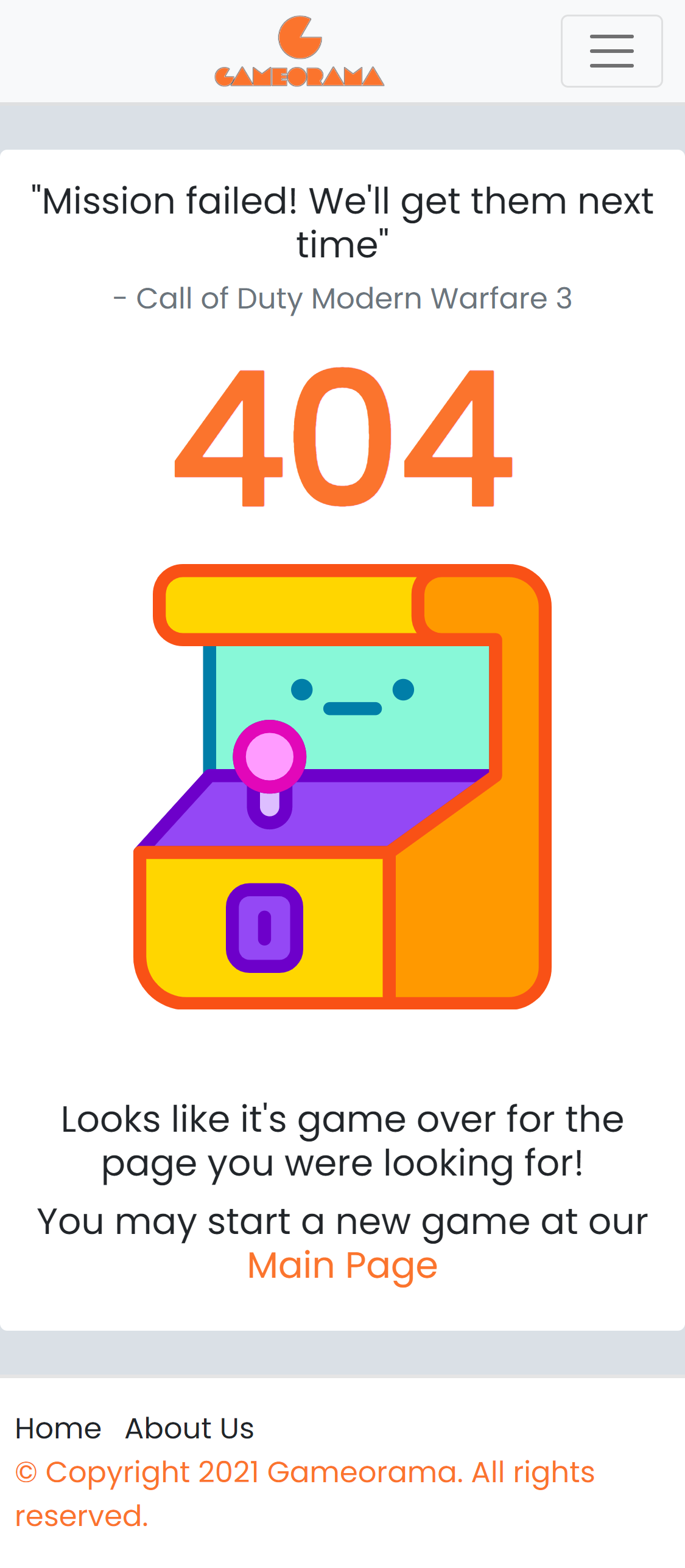

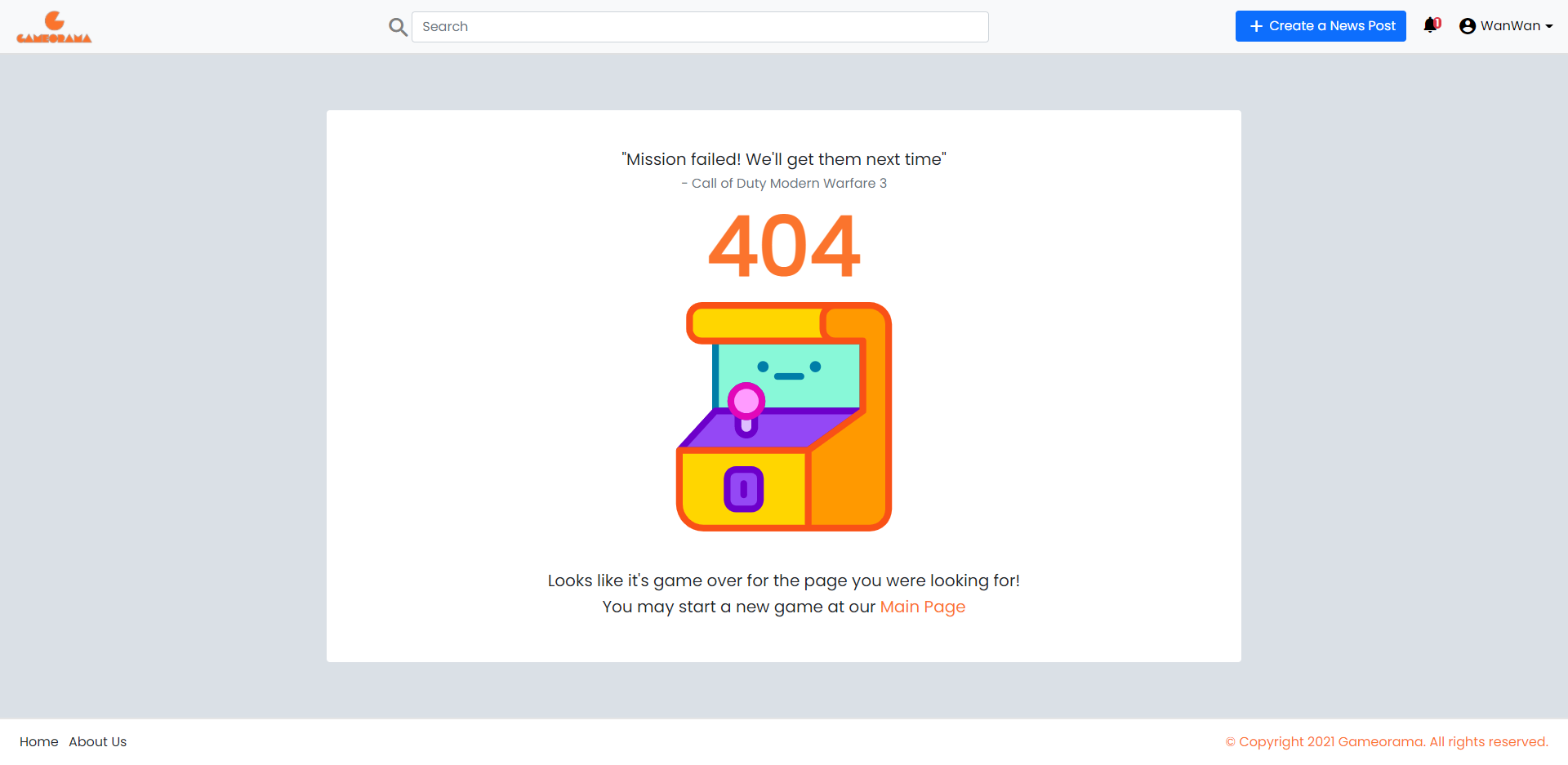

UI14: Error 404 Page

The page that appears when a 404 error occurs.

Desktop	Mobile

Figure 22: Error 404 Page

---

Revision history

Changes made to the first submission:

• 27/04/2021 - Added missing user stories - US105, US106, US107, US112 & US354 and switched some user stories (US351->US103 & US352->US104)
• 04/05/2021 - Added missing user stories - US346, US65
• 18/05/2021 - Added missing user story - US343
• 25/05/2021 - Added new user story - US25

---

GROUP2133, 14/03/2021

• André Nascimento, up201806461@fe.up.pt
• Caio Nogueira, up201806218@fe.up.pt
• Diogo Almeida (editor), up201806630@fe.up.pt
• Gustavo Sena, up201806078@fe.up.pt
