Nodejs Starter Kit – Reports

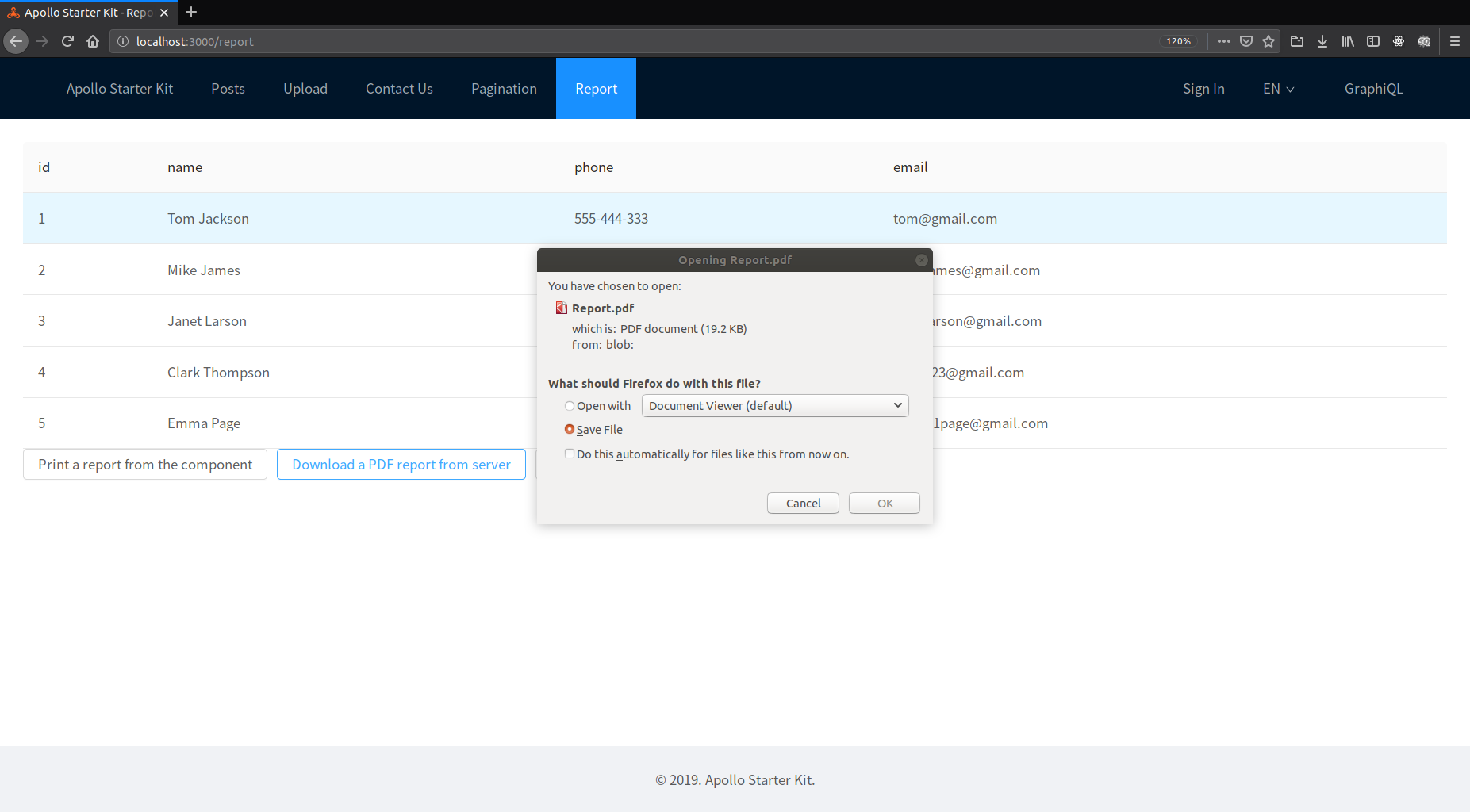

The module Reports in Nodejs Starter Kit implements the functionality to render, download, and print reports. The following image demonstrates the client side of the Reports module:

Getting Started

To test the Reports module yourself, follow the steps below:

1. Clone the repository and enter the project root directory:

git clone https://github.com/sysgears/apollo-universal-starter-kit.git
cd apollo-universal-starter-kit

2. Run yarn from the root directory to install the dependencies.

3. Run yarn seed from the root to create a default report in the database.

NOTE: If you're already using the starter kit, and your project is already connected to a database, the yarn seed command will overwrite the data that was already created in the database. In order not to overwrite the data, you need to run yarn migrate instead of yarn seed.

4. Run yarn watch to launch the project. It may take a couple of minutes to build and run the project the first time.

5. Visit the reports page [http://localhost:8080/report]. The user data for the report will be generated on the backend and sent to the client.

Available Features

The Reports module provides the following features:

• Printing reports from the React component
• Downloading reports in the PDF format
• Downloading reports in the Excel format

Implementation

The Reports module is located in the modules/reports folder, where you can find the module implementations for the server and client in the modules/reports/server-ts and modules/reports/client-react folders respectively.

The server module seeds some default report data to the database and uses the excel4node and pdfmake libraries to generate the Excel and PDF documents upon a respective request from the client React application.

The client module only provides an interface to render and download reports or to print them using the built-in printing functionality in browsers.

The Reports module also uses the functionality provided by i18next to translate the data depending on the language used in the application. The translations are located in the locales directory.

The Reports Module Configurations

Currently, the Reports module doesn't require any configuration. You also may not need to change the code that generates XLSX documents. However, if you want to change how PDF files are generated, you may re-work the implementation in the modules/reports/server-ts/pdf directory.

The Reports module has a class PDFBuilder and a module generator to create PDF files. Both PDFBuilder.ts and generator.ts are located in modules/reports/server-ts/pdf/helpers.

PDFBuilder

PDFBuilder provides the functionality to generate PDF files from the data you feed to it. This class uses the functionality provided by pdfmake, in particular, PdfPrinter, Content, and Style. You can completely re-work PDFBuilder or use the methods it provides to generate your PDF files. Consult the pdfmake documentation for more information about how the library works.

PDFBuilder provides the following methods:

• getDocument() Returns a new PDF document.
• addImage(), adds a new image to a PDF.
• addList(), adds a new ordered or unordered list to a PDF document.
• addStyle(), adds global styles to a PDF document.
• addTable(), adds a table to a PDF document.
• addText(), adds new text with optional styles and alignment to a PDF document.

generator

generator actually creates a PDF document using PDFBuilder. There are two functions defined in generator.ts:

• createPDF(), creates a new PDFBuilder instance, adds default styles, and content to a PDF document.
• generator(), synchronously creates a new Buffer object and transforms a PDF into a string to be returned to the client application.
