Commit b456bcc

Browse files
ashokdevtronashokdevtron
authored
doc: Added enhancements to security doc (#5203)
* Rough Draft Initiated * Created Security Enhancement Docs + Other Adhoc Fixes * Incorporated PM Feedback
1 parent ef45b07 commit b456bcc

File tree

4 files changed

+127
-12
lines changed

4 files changed

+127
-12
lines changed

‎.gitbook.yaml

Lines changed: 1 addition & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -77,3 +77,4 @@ redirects:
7777
global-configurations/api-token: user-guide/global-configurations/authorization/api-tokens.md
7878
user-guide/creating-application/workflow/ci-pipeline2: user-guide/creating-application/workflow/ci-pipeline.md
7979
user-guide/clusters: user-guide/resource-browser.md
80+
usage/clusters: user-guide/resource-browser.md

‎docs/reference/glossary.md

Lines changed: 1 addition & 1 deletion
Original file line numberDiff line numberDiff line change
@@ -58,7 +58,7 @@ An OCI-compliant registry can also store artifacts (such as helm charts). Here,
5858

5959
### Cordoning
6060

61-
Temporarily marking a node as unschedulable, preventing new pods from being assigned to it. In Devtron, you can cordon a node by going to Resource Browser → (choose a cluster) → Nodes → (click on a node) → Cordon (available in blue). [Read More...](../user-guide/clusters.md#cordon-a-node)
61+
Temporarily marking a node as unschedulable, preventing new pods from being assigned to it. In Devtron, you can cordon a node by going to Resource Browser → (choose a cluster) → Nodes → (click on a node) → Cordon (available in blue). [Read More...](../user-guide/resource-browser.md#cordon-a-node)
6262

6363
### CronJob
6464

‎docs/user-guide/application-groups.md

Lines changed: 1 addition & 1 deletion
Original file line numberDiff line numberDiff line change
@@ -182,7 +182,7 @@ Your applications would be up and running in some time.
182182

183183
{% hint style="warning" %}
184184
### Who Can Perform This Action?
185-
Users need to have [Build & deploy permission](../global-configurations/authorization/user-access.md#role-based-access-levels) or above (along with access to the environment and application) to restart workloads in bulk.
185+
Users need to have [Build & deploy permission](./global-configurations/authorization/user-access.md#role-based-access-levels) or above (along with access to the environment and application) to restart workloads in bulk.
186186
{% endhint %}
187187

188188
Restarting workloads might be necessary if you want your new code or configuration to come into effect, or you are experiencing issues like crashing of pods.

‎docs/user-guide/security-features.md

Lines changed: 124 additions & 10 deletions
Original file line numberDiff line numberDiff line change
@@ -1,20 +1,134 @@
11
# Security Features
22

3-
{% hint style="info" %}
4-
### Prerequisite
3+
## Introduction
54

6-
Install any one of the following integrations for scanning vulnerabilities:
7-
* [Clair](../user-guide/integrations/clair.md)
8-
* Trivy
9-
{% endhint %}
5+
Devtron provides [DevSecOps](https://devtron.ai/product/devsecops) capabilities across your software development life cycle for both: the default CI/CD solution by Devtron as well as your existing CI/CD Tools.
6+
7+
One of the key components of DevSecOps is the detection of security risks. Currently, Devtron supports the following types of scanning:
8+
9+
* Image Scan
10+
* Code Scan
11+
* Kubernetes Manifest Scan
12+
13+

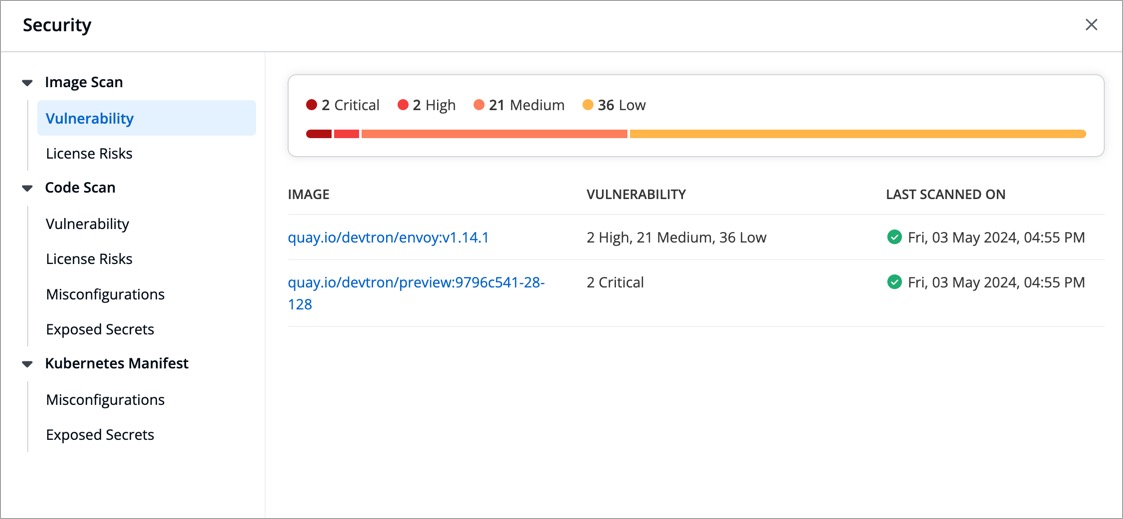

![Figure 1: Security Scan Results](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/security-scan.jpg)
14+
15+
You can integrate a scanning tool of your choice. By default, Devtron integrates with Trivy using which you can scan for the following issues:
16+
17+
* Vulnerability
18+
* License Risks
19+
* Misconfigurations
20+
* Exposed Secrets
21+
22+
---
23+
24+
## Where to Initiate the Scan
25+
26+
### Before Building Artifact
27+
28+
When you commit the code, it's essential to scan it before building a [container image](../reference/glossary.md#image). By scanning early, you can catch and fix problems before they become expensive or time-consuming to remediate later.
29+
30+
![Figure 2: Scanning in Pre-CI Stage](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/pre-ci.gif)
31+
32+
1. In your application, go to **App Configuration** → **Workflow Editor**.
33+
34+
2. Click the CI pipeline of your preferred workflow.
35+
36+
3. Go to the **Pre-build stage** (tab).
37+
38+
4. Click **+ Add Task**.
39+
40+
5. Choose **Vulnerability_Scanner v1.0.0** plugin from the list.
41+
42+
6. Click **Update Pipeline**.
43+
44+
Based on the results of the scanner, you can also decide whether your CI should proceed further or not. This is possible through **Pass/Failure Condition** setting in the plugin. In the below example, we are allowing image build only if the no. of high vulnerability is zero.
45+
46+
![Figure 3: Setting a Condition](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/pre-ci-condition.gif)
47+
48+
Results of Pre-CI scan will be visible under `Code Scan` in the **App Details** page as shown below.
49+
50+
![Figure 4: Pre-CI Code Scan Results](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/code-scan.gif)
51+
52+
### After Building Container Image
53+
54+
Once a container image is ready, you can scan its base image libraries, stale files, compromised licenses, and many more.
55+
56+
There are 2 options available:
57+
* Image scan in the Build stage (refer [Security Scans](./security-features/security-scans.md))
58+
* Comprehensive scan in Post-Build stage
59+
60+
This section contains the steps for comprehensive scan.
61+
62+
![Figure 5: Scanning in Post-CI Stage](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/post-ci.gif)
63+
64+
1. Go to the **Post-build stage** (tab) of your CI pipeline.
65+
66+
2. Click **+ Add Task** and choose **Vulnerability_Scanner v1.0.0**.
1067

11-
Devtron's security feature consists of two primary components:
68+
3. Click **Update Pipeline**.
1269

13-
1. [Security Scans](./security-features/security-scans.md) - This allows you to identify and address potential security risks effectively. By leveraging this feature, you can ensure that your containerized applications are safeguarded against known vulnerabilities.
70+
Results of Post-CI scan will be visible under `Image Scan` in the **App Details** page as shown below.
1471

15-
2. [Security Policies](./security-features/security-policies.md) - This allows you to define policies to block or allow the deployment of container images depending on the vulnerabilities detected.
72+
![Figure 6: Post-CI Image Scan Results](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/image-scan-1.gif)
73+
74+
### Before Triggering Deployment
75+
76+
There can be a loophole where the original image built in the CI stage gets compromised later (say, in publicly accessible repository). Therefore, you can scan the image and catch issues before deploying it. On top of that, you can also scan manifests to detect misconfigurations and exposed secrets.
77+
78+
![Figure 7: Scanning in Pre-CD Stage](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/pre-deploy.gif)
79+
80+
1. Go to the **Pre-Deployment stage** (tab) of your CD pipeline.
81+
82+
2. Click **+ Add Task** and choose **Vulnerability_Scanner v1.0.0**.
83+
84+
3. Click **Update Pipeline**.
85+
86+
Results of Pre-CD scan will be visible under `Image Scan` and `Kubernetes Manifest` in the **App Details** page as shown below.
87+
88+
![Figure 8: Pre-CD Scan Results](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/manifest-scan.gif)
89+
90+
### During Helm App Deployment
91+
92+
When you [deploy a helm chart](../user-guide/deploy-chart/deployment-of-charts.md), Devtron will scan the image associated with that helm chart and also the manifests, but unlike Devtron Apps, there is no code scan involved.
93+
94+
Results of helm app scan will be visible under `Image Scan` and `Kubernetes Manifest` in the **App Details** page as shown below.
95+
96+
![Figure 9: Helm App Scan Results](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/helm-app-scan.gif)
97+
98+
### Extras
99+
100+
You can also check for vulnerabilities within a specific workload such as job, pod, deployment, etc. There are two ways to perform it:
101+
102+
#### From App Details
103+
104+
* Go to **App Details** (Devtron App/Helm App) → **Workloads** (under `K8 Resources` tab).
105+
* Click a workload, e.g., Pod.
106+
* On the right-hand side, click the kebab menu (3 vertical dots).
107+
* Click **Check Vulnerabilities**.
108+
109+
![Figure 10: Scanning Workloads - App Details Page](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/app-details-scan.gif)
110+
111+
#### From Resource Browser
112+
113+
* Go to Resource Browser.
114+
* Select a cluster.
115+
* Click a workload within the **Workloads** dropdown.
116+
* Access the **Check Vulnerabilities** option from the kebab menu present to your selected workload.
117+
118+
![Figure 11: Scanning Workloads - Resource Browser](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/security-features/rb-scan.gif)
119+
120+
---
121+
122+
## Scans and Policies
16123

17124
{% hint style="warning" %}
18125
### Who Can Perform This Action?
19126
Users need to have super-admin permission to enable vulnerability scanning and to define security policies in Devtron.
20-
{% endhint %}
127+
{% endhint %}
128+
129+
Devtron's Security feature has two primary sections:
130+
131+
1. [**Security Scans**](./security-features/security-scans.md) - You can view the vulnerabilities detected across your applications.
132+
133+
2. [**Security Policies**](./security-features/security-policies.md) - This allows you to define guardrails to block or allow the deployment of container images depending on the vulnerabilities detected.
134+
