Leaf Parameters

Charlie Hewitt edited this page May 19, 2019 · 7 revisions

Leaf Count

Number of leaves or blossom on each of the deepest level of branches. If <0 then all the leaves will be placed in a 'fan' at the end of the stem (see fan palm).

Leaf Shape

Which predefined leaf shape to use, there are 8 complex leaf shapes (shown from left to right in the image below) as well as basic rectangular (useful when using image textures) and triangular options (good for palm leaves).

  • Elliptic
  • Ovate
  • Linear
  • Cordate
  • Maple
  • Palmate
  • Spiky Oak
  • Rounded Oak
  • Rectangle
  • Triangle

Leaf Scale

Overall leaf scale.

Leaf Width

Leaf scale in the x-direction (width).

Leaf Bend

Fractional amount by which leaves are reoriented to face the light (outwards from the trunk) - minor visual impact.

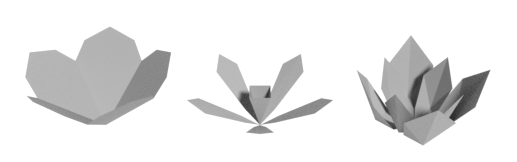

Blossom Shape

Predefined blossom shapes

  • Cherry
  • Orange
  • Magnolia

Blossom Rate

Fractional rate at which blossom occurs relative to leaves (eg, .4 = 40% of generated leaves are blossom instead).

Blossom Scale

Overall blossom scale.
