In this project, let's build a Cash Withdrawal app by applying the concepts we have learned till now.

Refer to the image below:

Design Files

Click to view

• Extra Small (Size < 576px) and Small (Size >= 576px)
• Medium (Size >= 768px), Large (Size >= 992px) and Extra Large (Size >= 1200px)

Set Up Instructions

Click to view

• Download dependencies by running npm install
• Start up the app using npm start

Completion Instructions

Functionality to be added

The app must have the following functionalities

• Initially, the balance should be 2000 rupees

• When a denomination is clicked, then the respective value should be deducted from the balance available

• The CashWithdrawal component receives the denominationsList as a prop. It consists of a list of denomination objects with the following properties in each denomination object

  Key	Data Type
  id	Number
  value	Number

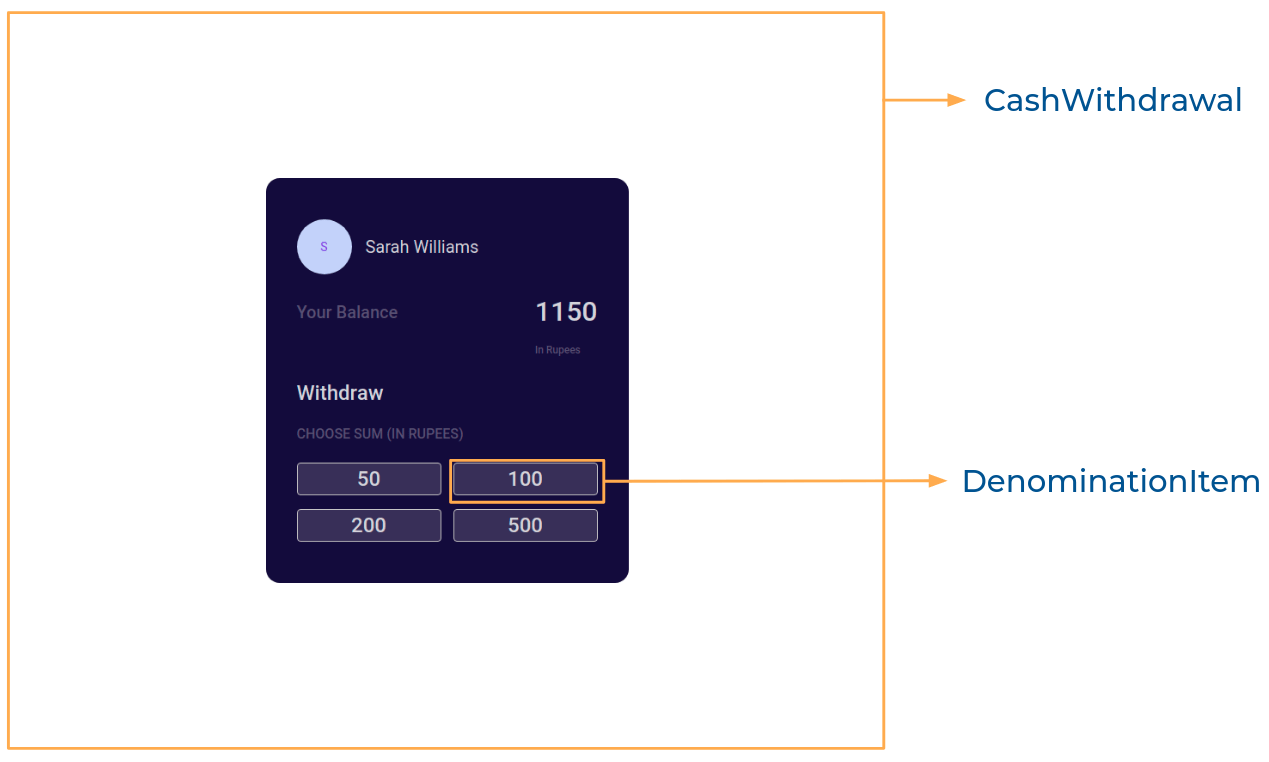

Components Structure

Implementation Files

Use these files to complete the implementation:

• src/components/CashWithdrawal/index.js
• src/components/CashWithdrawal/index.css
• src/components/DenominationItem/index.js
• src/components/DenominationItem/index.css

Quick Tips

Click to view

• The string method slice() extracts a section of a string and returns it as a new string, without modifying the original string

  const text = "The quick brown fox";
  console.log(text.slice(0, 3)); // The
  console.log(text.slice(2, 3)); // e

• You can use the cursor CSS property to specify the mouse cursor to be displayed when pointing over an element

    cursor: pointer;





• You can use the below outline CSS property for buttons and input elements to remove the highlighting when the elements are clicked

    outline: none;


Resources

Colors

Hex: #150b3e

Hex: #c7d2fe

Hex: #7c3aed

Hex: #d4d2db

Hex: #585076

Hex: #382f5a

Hex: #c4c4c4

Font-families

• Roboto

Things to Keep in Mind

• All components you implement should go in the src/components directory.
• Don't change the component folder names as those are the files being imported into the tests.
• Do not remove the pre-filled code
• Want to quickly review some of the concepts you’ve been learning? Take a look at the Cheat Sheets.
